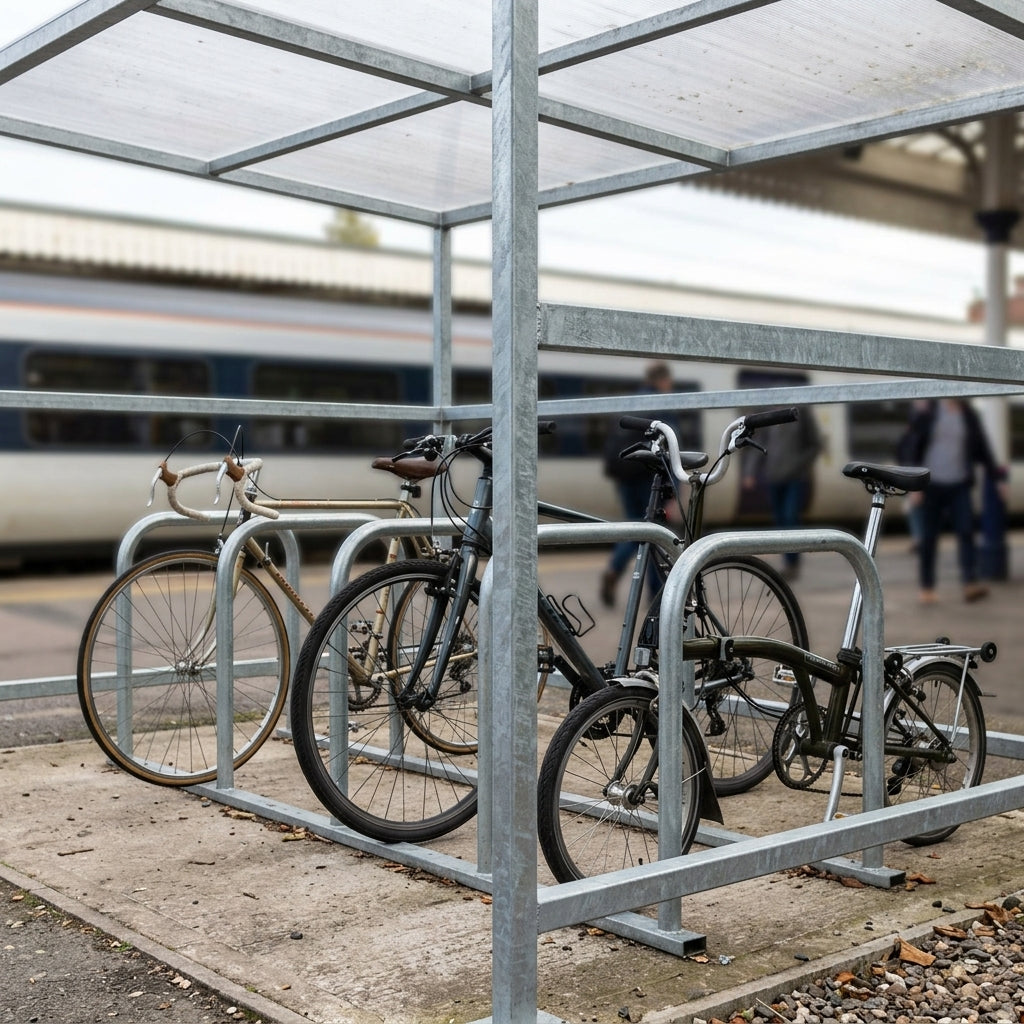

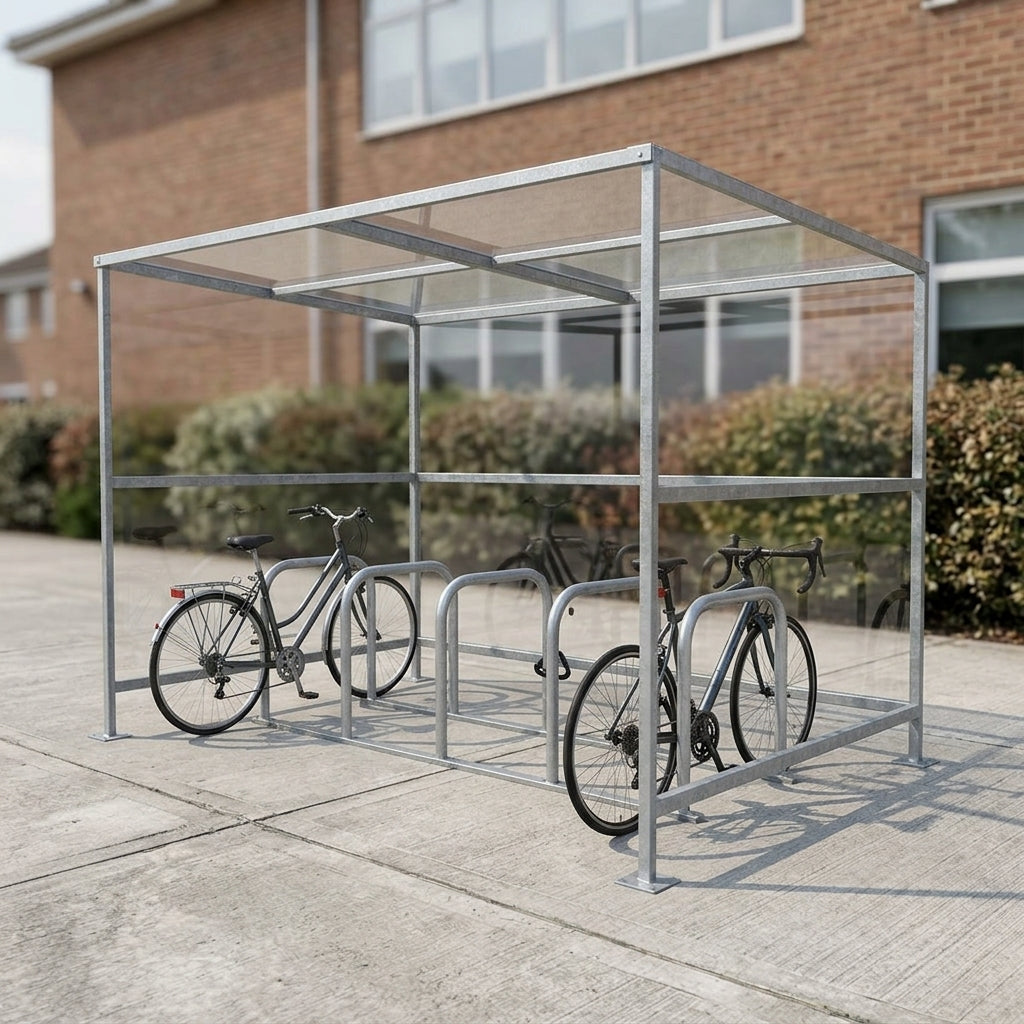

10-cycle shelter with Sheffield rack, galvanised steel frame

Full-size cycle shelter accommodating 10 adult bicycles with integrated Sheffield toast rack and optional side panels.

This weather-resistant shelter features a mild steel frame finished in galvanised coating to BS EN ISO 1461:1999, delivering long-term rust protection. The unit arrives flat-pack for straightforward assembly and is secured via plate-mounted bolt-down fixings to the ground. The clear Petguv back panel maintains visibility without fogging.

Key Features

• Accommodates up to 10 adult cycles on Sheffield toast rack
• Galvanised mild steel 50 mm diameter tube construction
• Clear Petguv back panel (non-fogging)
• Flat-pack delivery with simple ground fixing assembly
• Includes base plates and flanges for bolt-down installation
• Optional pair of fabricated side panels available

Specifications

• Overall dimensions: 3050 mm (front opening) × 2000 mm (depth) × 2200 mm (height at front)
• Frame material: mild steel, fully galvanised to BS EN ISO 1461:1999
• Tube diameter: 50 mm
• Mounting: plate-mounted bolt-down to ground surface
• Back panel: clear Petguv

Applications

• Educational institutions and school premises
• Local authority and council facilities
• Commercial developments and business parks
• Residential developments and apartment complexes
• Public sector transport interchanges
