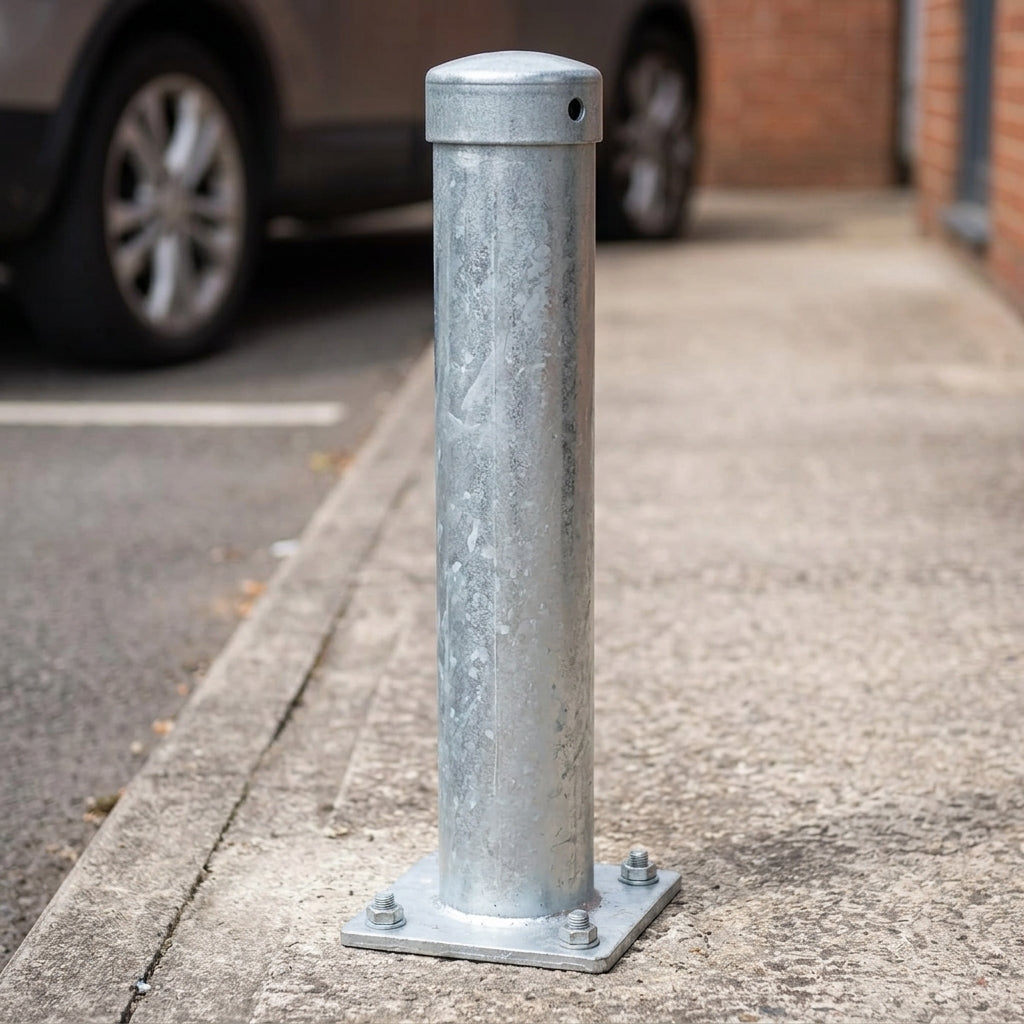

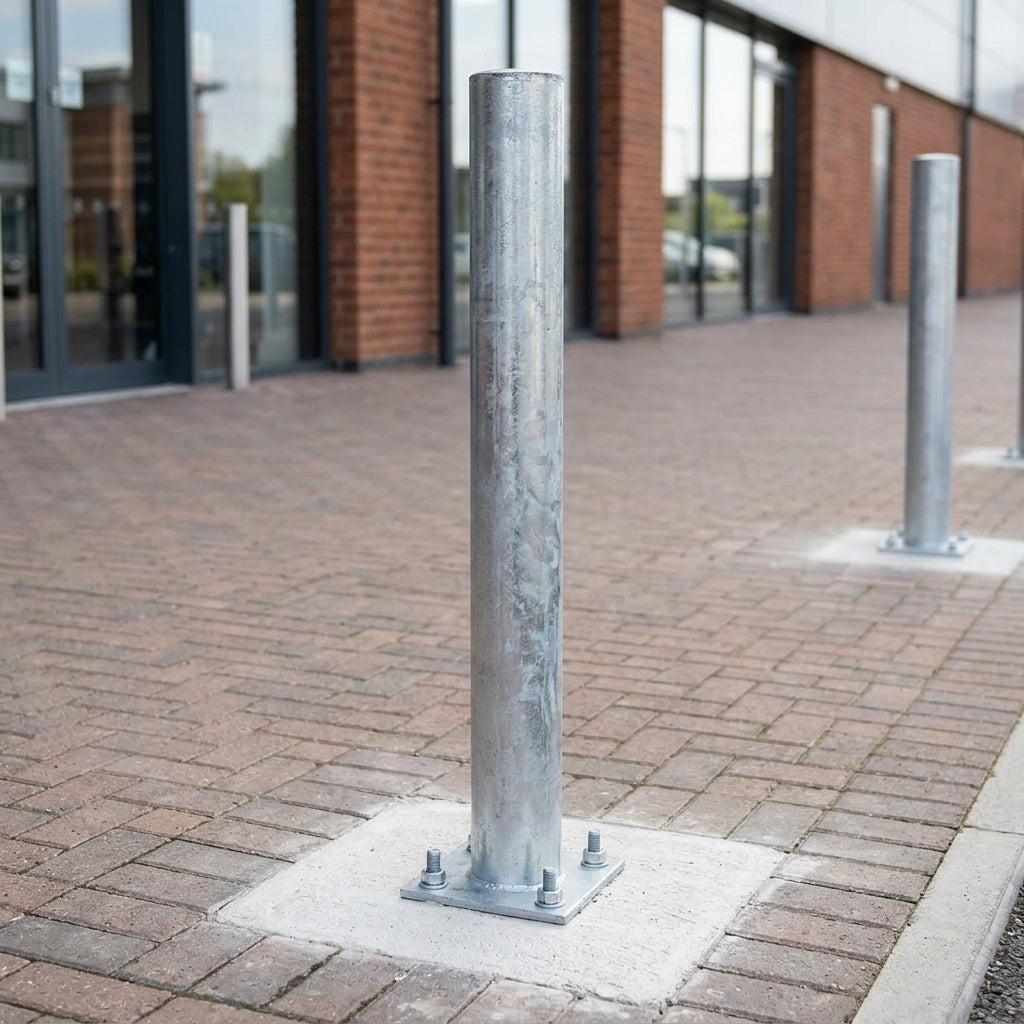

1000mm galvanised mild steel bollard – fixed perimeter barrier

Heavy-duty galvanised mild steel bollard for permanent perimeter security and pedestrian protection.

Supplied in a choice of 13 diameters from 60mm to 323mm, with welded steel cap finish. Select between root-fixed (1400mm overall) for concrete installation or base-plated (1000mm overall) for bolted mounting. Wall thickness ranges from 3mm to 5mm depending on diameter, ensuring impact resistance and durability.

Key Features

• 13 diameter options (60mm to 323mm) to suit various security requirements
• Welded steel cap for clean, finished appearance
• Two fixing methods: extended root legs or flange plate
• Galvanised finish for corrosion resistance and low maintenance
• Suitable for complementing removable and retractable post systems
• Ram-raid and collision-resistant design

Specifications

• 1000mm above-ground height (base-plated version) or 1400mm overall (root-fixed version)
• 3mm wall thickness: 60–127mm and 152mm diameters
• 5mm wall thickness: 139mm, 168mm, 193mm diameters
• Round fixing plates: 133mm × 5mm (3 holes, 60mm and 76mm diameters); 133mm × 5mm (3 holes, 90–114mm diameters)
• Square fixing plates: 250mm × 10mm (4 holes, 127–193mm diameters); 400mm × 10mm (4 holes, 219mm diameter)
• Galvanised mild steel construction

Applications

• Protected and controlled parking areas
• Pedestrian walkway and public space demarcation
• Perimeter security barriers for commercial and residential properties
• Ram-raid deterrence for high-risk locations
• Standalone or complementary installation alongside removable and retractable post systems
