1m Wide Galvanised Steel Shopping Trolley Shelter with Clear Roof

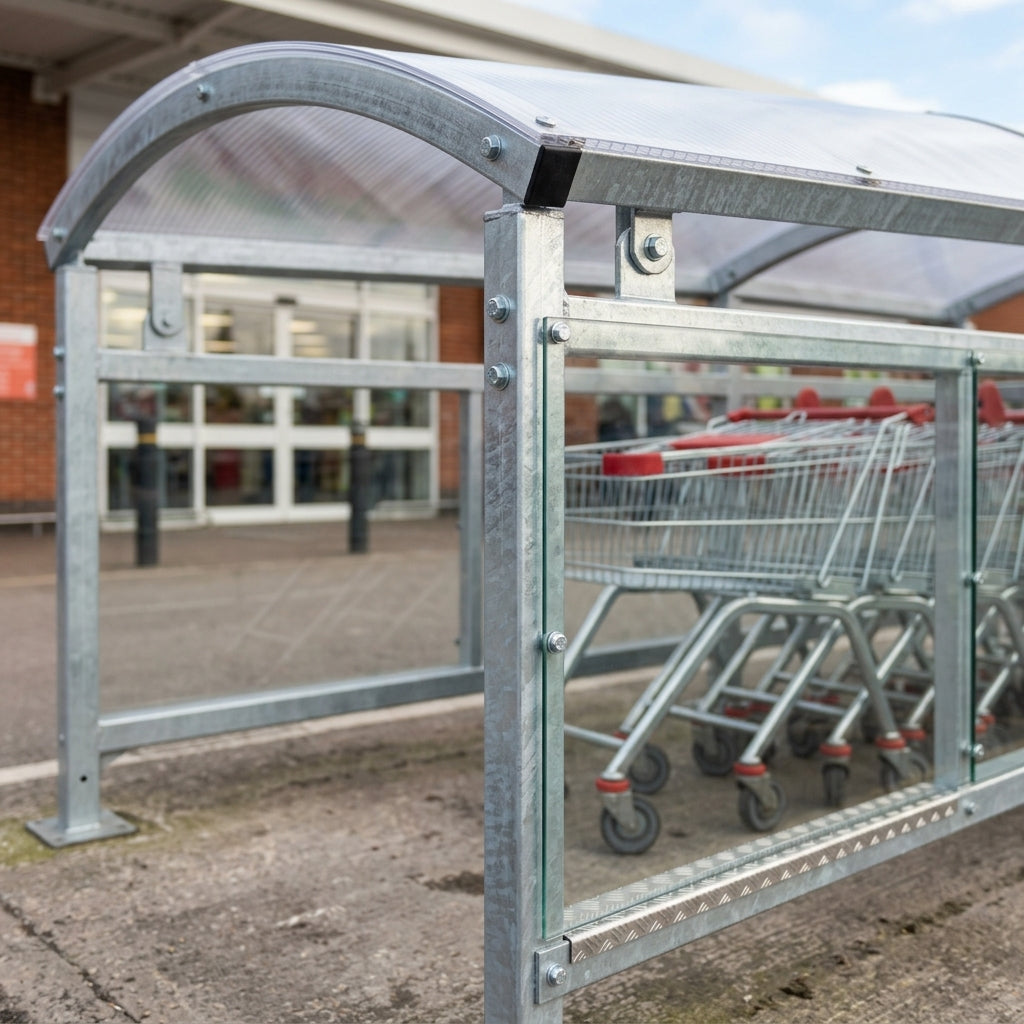

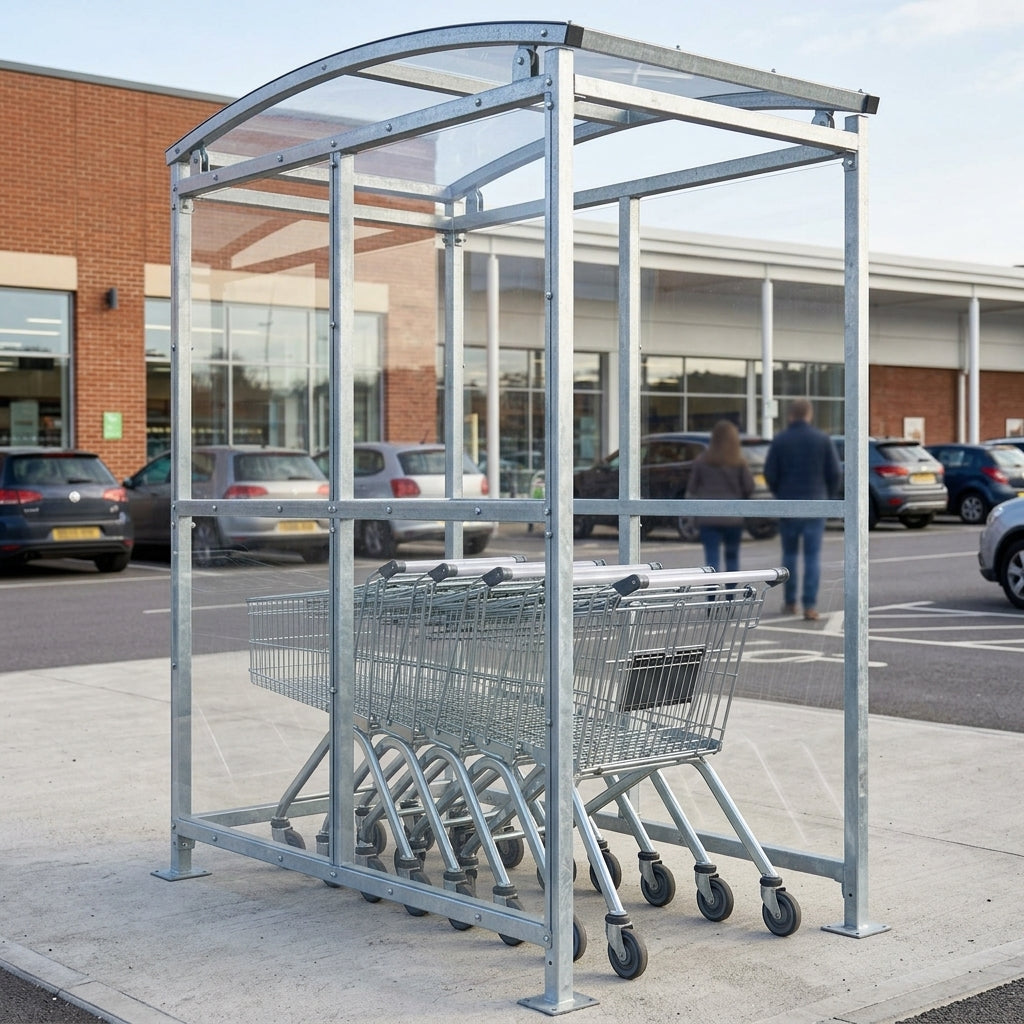

A robust, free-standing trolley shelter in galvanised steel with a curved clear roof panel, designed for easy on-site assembly and bolt-down installation.

This modular shelter provides weather protection for shopping trolleys in supermarket and retail carparks. The galvanised mild steel construction offers rust resistance and durability, while the 4mm PETG clear roof sheet maintains visibility and allows natural light. Units can be positioned end-to-end or side-by-side to expand storage capacity or create covered walkways.

Key Features

• Galvanised mild steel frame, weather-proof and rust-resistant
• Clear 4mm PETG roof panel with side-to-side curved design
• Modular construction for flexible layout options
• Bolt-down footplates with adjustable feet (10mm bolts with chemical resin)
• Open-fronted design for easy trolley access
• Square flange plates (140mm × 140mm × 10mm) with four bolts per unit

Specifications

• Width: 1000mm overall
• Length: 2099mm
• Height: 2090mm clearance, 2513mm overall
• Roof material: 4mm PETG clear sheet
• Frame material: Galvanised mild steel
• Installation: Bolt-down as standard, on-site assembly required

Applications

• Supermarket and grocery store carpark trolley storage
• Retail shopping centres and retail parks
• Covered trolley organisation areas
• Multiple unit configurations for larger covered walkway areas
