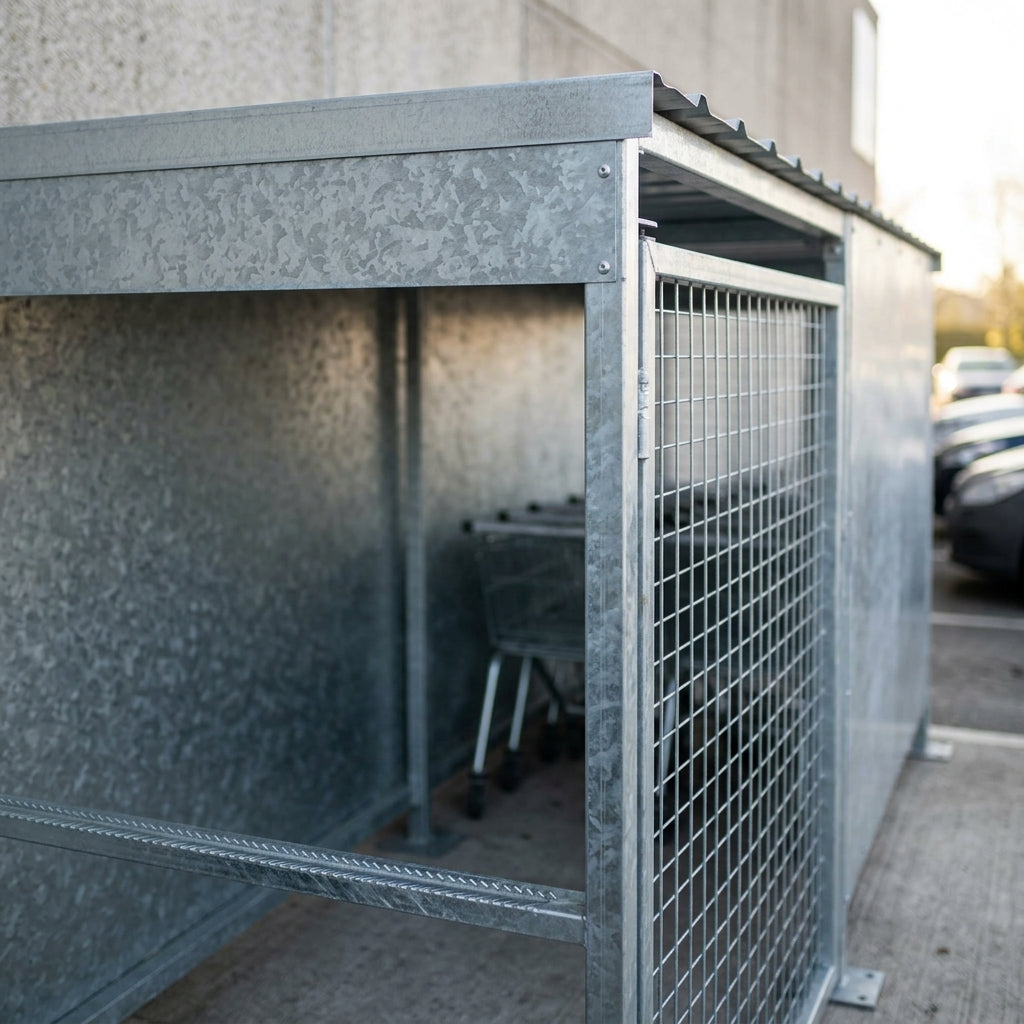

2m × 1–5m Galvanised Steel Bin Store with Mesh Doors

Free-standing galvanised steel bin shelter with lockable mesh doors and modular construction for on-site assembly.

A robust, durable storage solution built from mild steel to EN10219:2006 with galvanised finish. The shelter features a covered roof and side panels, delivering secure protection for waste bins and general storage. Available in five base lengths (1m–5m) with extension bays to achieve the desired footprint, and bolt-down fixing as standard.

Key Features

• Lockable mesh doors secured by padlock (not supplied)
• Galvanised mild steel construction to EN10219:2006
• Modular design with extension bay options
• Pre-fixed mounting feet for bolt-down installation
• Galvanised sheet roof and side panels (1mm thickness)
• 2190mm internal height clearance

Specifications

• Width: 2m
• Depth: 2099mm overall
• Length: 1m, 2m, 3m, 4m or 5m (extensible)
• Frame: 50mm square section mild steel
• Steel thickness: 1mm galvanised panels
• Mounting: Square flange plates 140mm × 140mm × 10mm (4 bolts per plate)
• Height clearance: 2190mm

Applications

• Commercial waste bin storage
• Hospitality venues (pubs, clubs, restaurants)
• Industrial on-site material protection
• General secure outdoor storage
• Multi-unit residential developments
