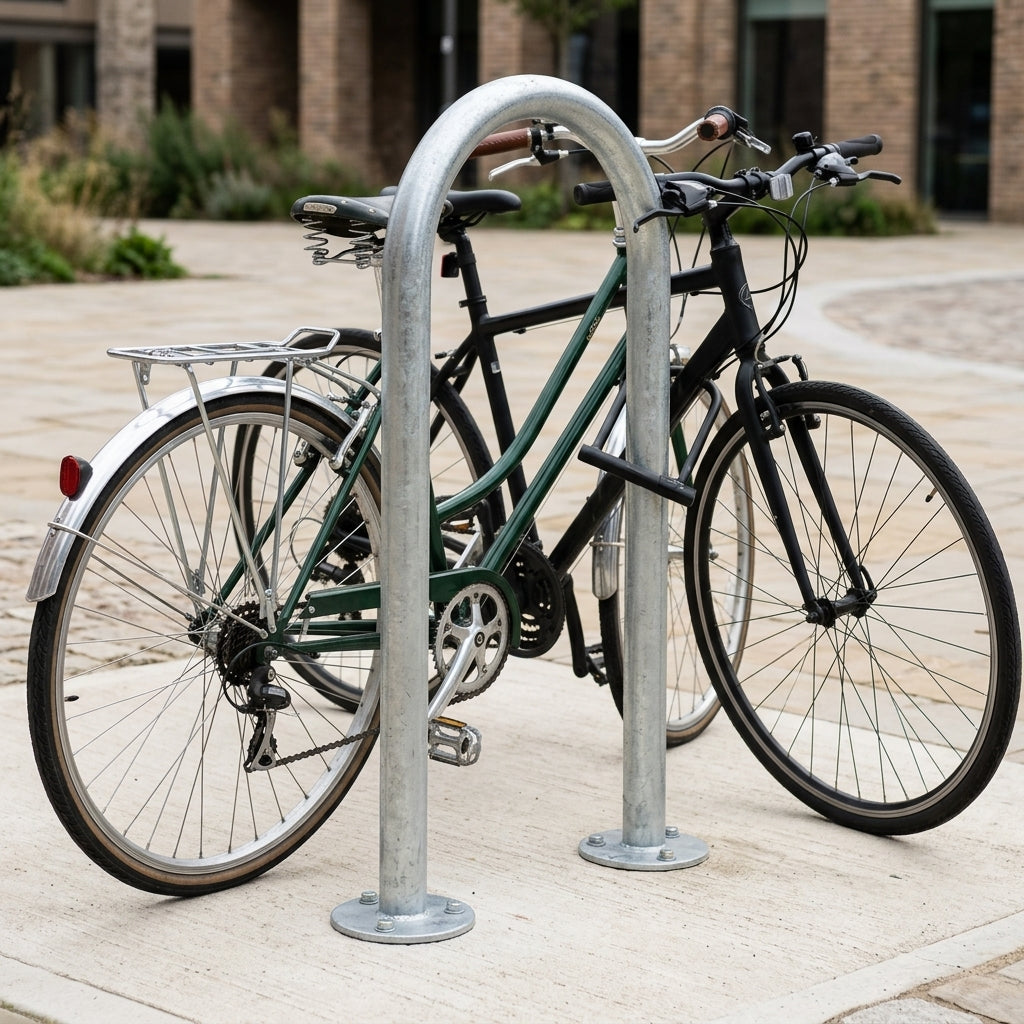

340mm Sheffield Cycle Stand Stainless Steel – Root or Surface Fixed

Tubular stainless steel cycle stand offering secure, space-efficient bike parking in two fixing configurations.

This popular Sheffield-pattern stand accommodates frame and wheel locking with a minimalist design. Manufactured from stainless steel with 48mm tube construction and 2.5mm wall thickness, it resists corrosion and maintains appearance over extended outdoor use. Available in root-fixed (ground-mounted) or surface-mounted (baseplate) versions to suit different installation requirements.

Key Features

• Stainless steel construction throughout
• Accommodates frame and wheel simultaneous locking
• Space-saving tubular design

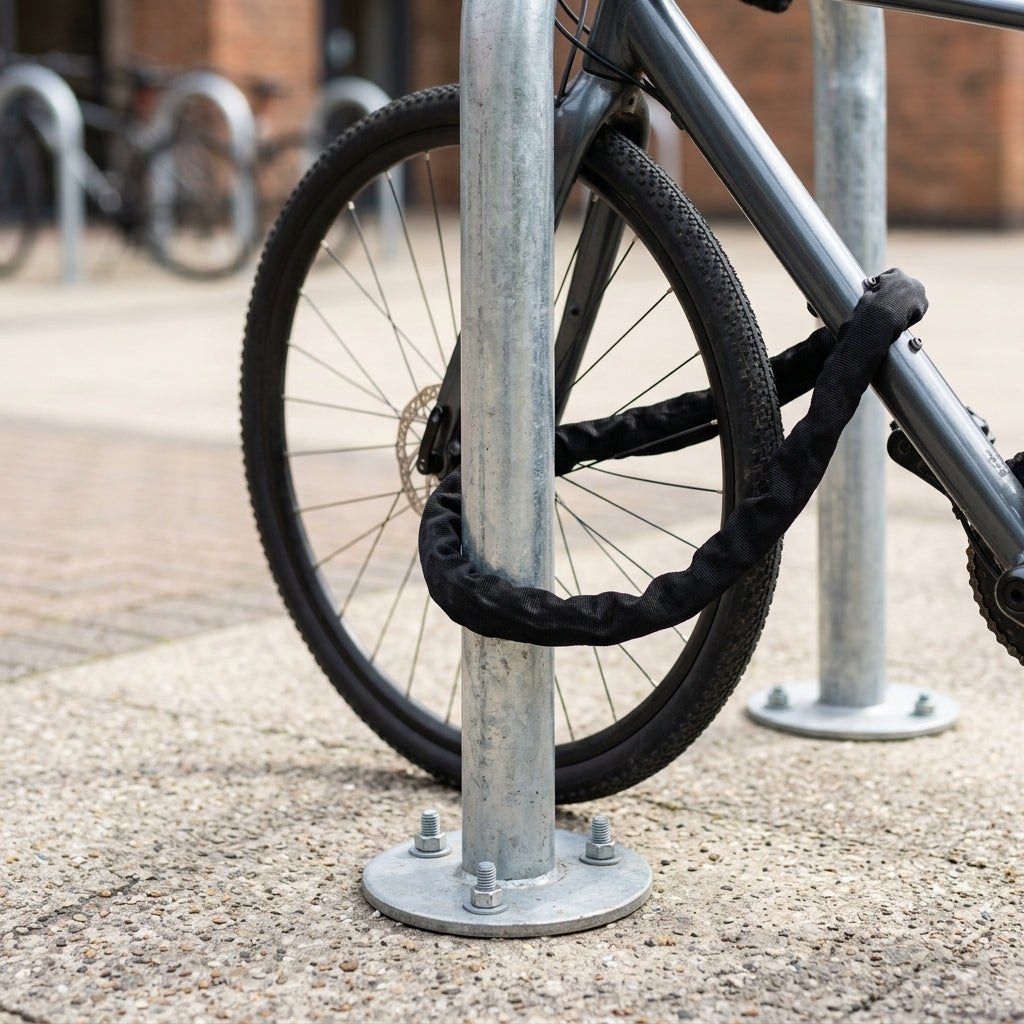

• Two fixing options: root-fixed or surface-mounted with baseplate
• Low-maintenance corrosion-resistant finish

Specifications

• Width: 340mm
• Surface-mounted height: 750mm
• Root-fixed overall length: 1050mm
• Tube diameter: 48mm o/d
• Wall thickness: 2.5mm
• Flange plate: 133mm diameter × 5mm
• Fixings: 6 bolts per stand
• Approximate weight per stand: 8kg

Applications

• Public cycle parking facilities
• Workplace and commercial bike storage
• Educational institutions and campus cycle parks
• Leisure centres and transport hubs
• Urban streetscape and town centre parking
