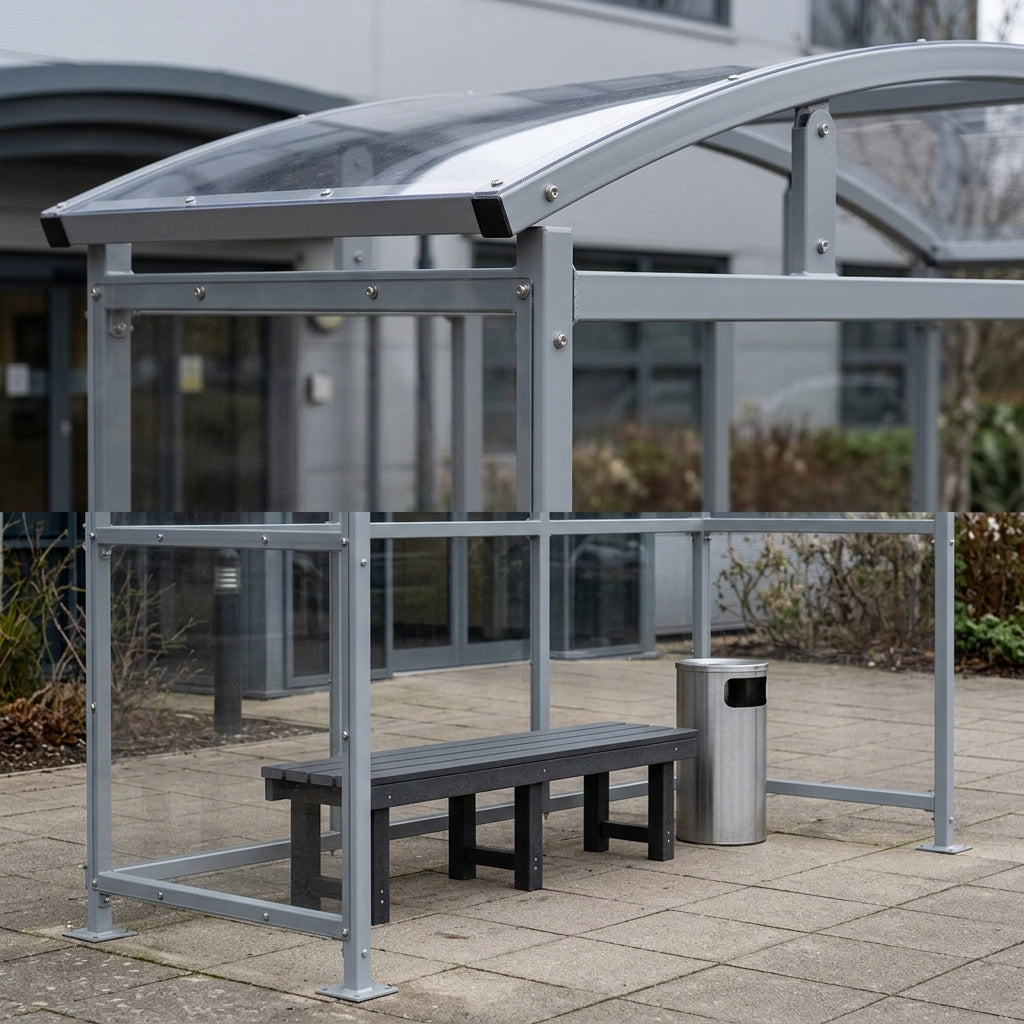

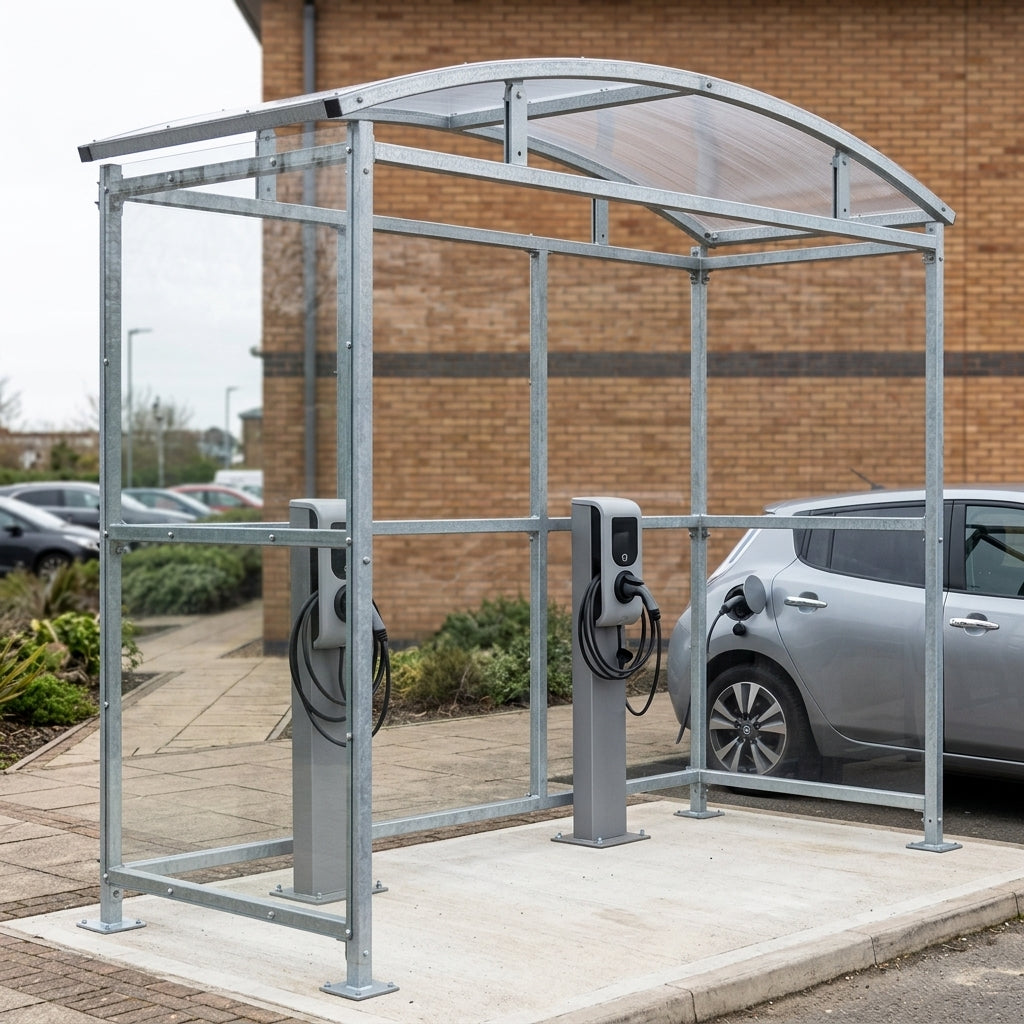

3m wide EV charger shelter with PETG roof – 1–5m lengths

Free-standing, open-fronted galvanised steel shelter designed for EV charging bays, with curved PETG clear roof and bolt-down assembly.

A modular shelter system that combines durability with weather protection. The structure is constructed from galvanised mild steel to resist rust, and features a 4mm PETG clear roof panel with curved side-to-side design. Available in fixed 3m width with lengths from 1m to 5m, and extension bays can be added on site to reach your desired length.

Key Features

• Galvanised mild steel construction for corrosion resistance
• 4mm PETG clear sheet roof with curved profile
• Modular design allows extension and flexible layout
• Bolt-down installation with M10 threaded rod, washer and chemical resin anchors
• Open-fronted design for easy vehicle access
• 2090mm internal clearance height (2513mm overall)

Specifications

• Width: 3147mm overall
• Depths available: 1m, 2m, 3m, 4m, 5m
• Internal height clearance: 2090mm
• Overall height: 2513mm
• Roof material: 4mm PETG clear sheet
• Frame material: Galvanised mild steel
• Foundation: Square flange plates 140mm × 140mm × 10mm (4 bolts per plate)

Applications

• Public and workplace EV charging stations
• Car park shelter systems
• Covered walkways and circulation areas
• Multiple units can be installed end-to-end or side-by-side for larger covered zones
