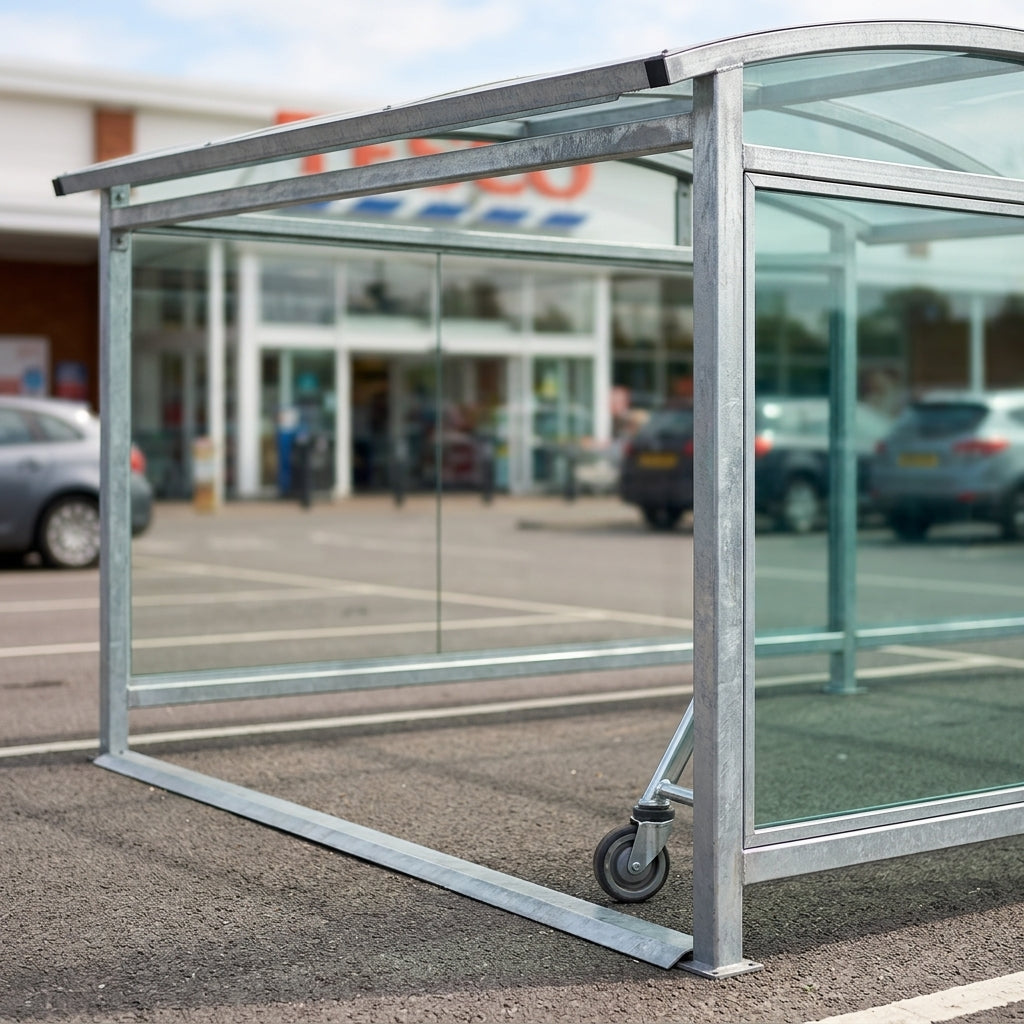

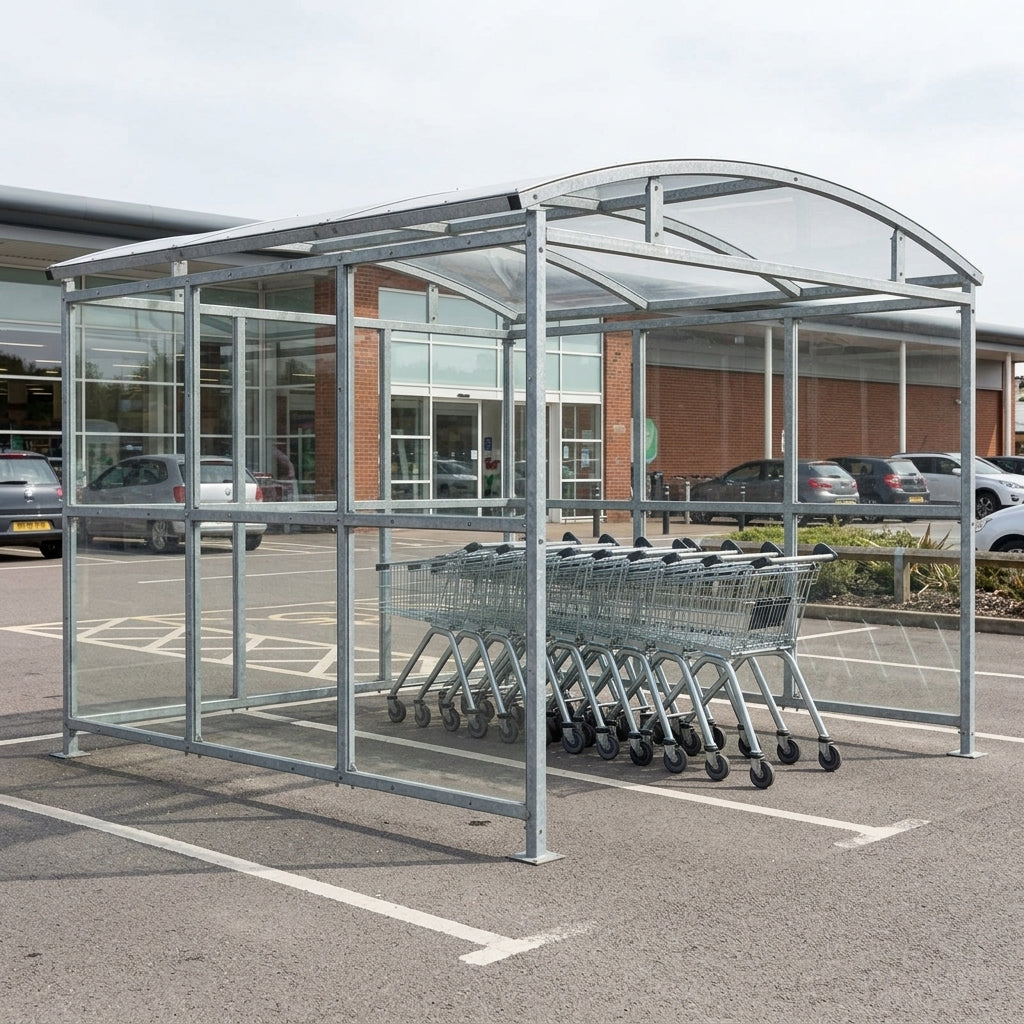

3m Wide Shopping Trolley Shelter – Galvanised Steel, 1–5m Lengths

Free-standing galvanised steel shopping trolley shelter with clear PETG roof panel and modular design for supermarket car parks.

The shelter provides weather protection and organised storage for shopping trolleys on-site. Its open-fronted design with curved PETG roof and side panels maintains visibility whilst keeping trolleys dry. Modular construction allows units to be extended lengthways or positioned end-to-end for larger coverage areas, and bolt-down footplates ensure secure installation.

Key Features

• Galvanised mild steel construction for rust and weather resistance
• 4mm PETG clear roof sheet with curved profile
• Open front design with integral side panels
• Modular, bolt-down assembly – no welding required
• Adjustable footplates with chemical resin bolt fixings
• Extendable: choose 1m, 2m, 3m, 4m or 5m depth

Specifications

• Width: 3147mm overall
• Length options: 1m, 2m, 3m, 4m, 5m (further extensions possible)
• Internal clearance height: 2090mm; overall height: 2513mm
• Roof material: 4mm PETG clear sheet
• Frame: galvanised mild steel
• Base: square flange plates 140mm × 140mm × 10mm, 4 bolts per plate
• Installation: bolt-down with chemical resin anchors

Applications

• Supermarket and retail car park trolley storage
• Covered trolley parks for customer convenience
• Extended units for large-scale trolley management
• End-to-end or side-by-side configurations for covered walkways
