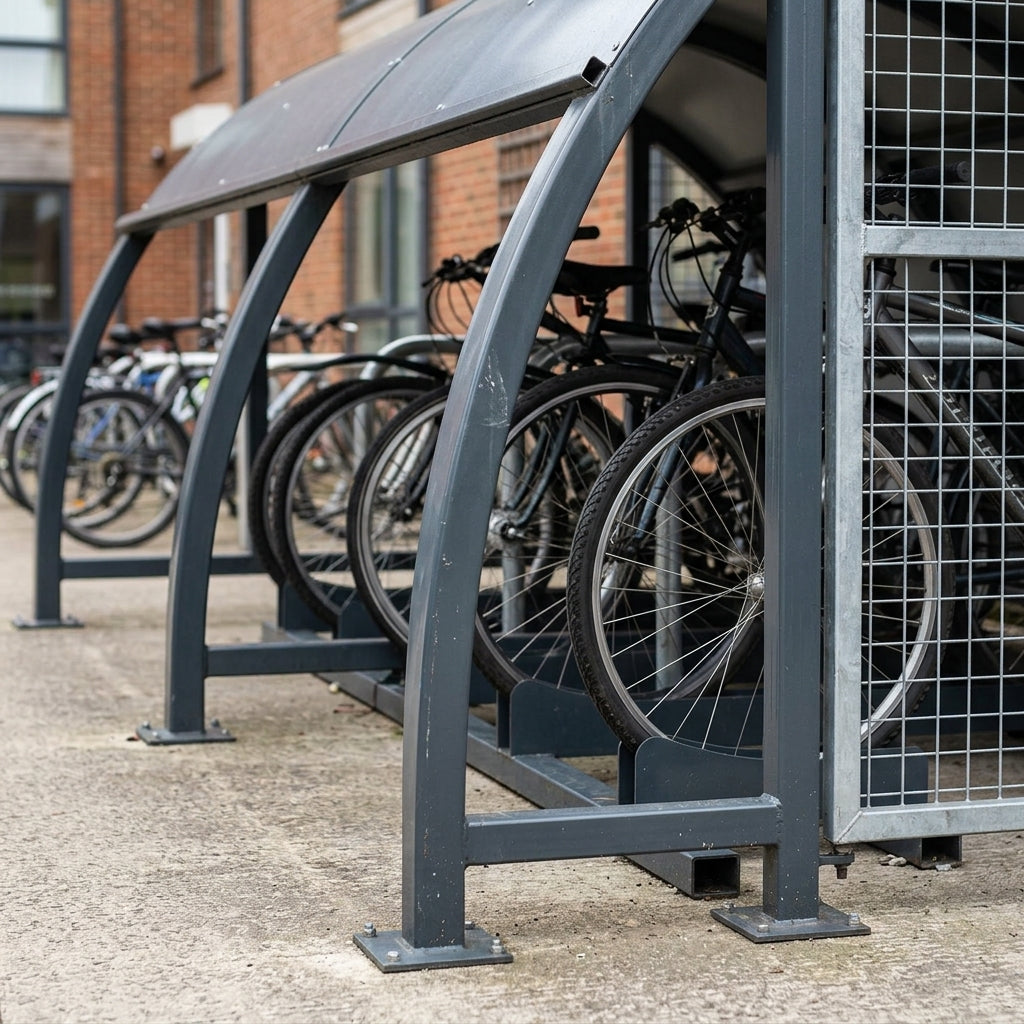

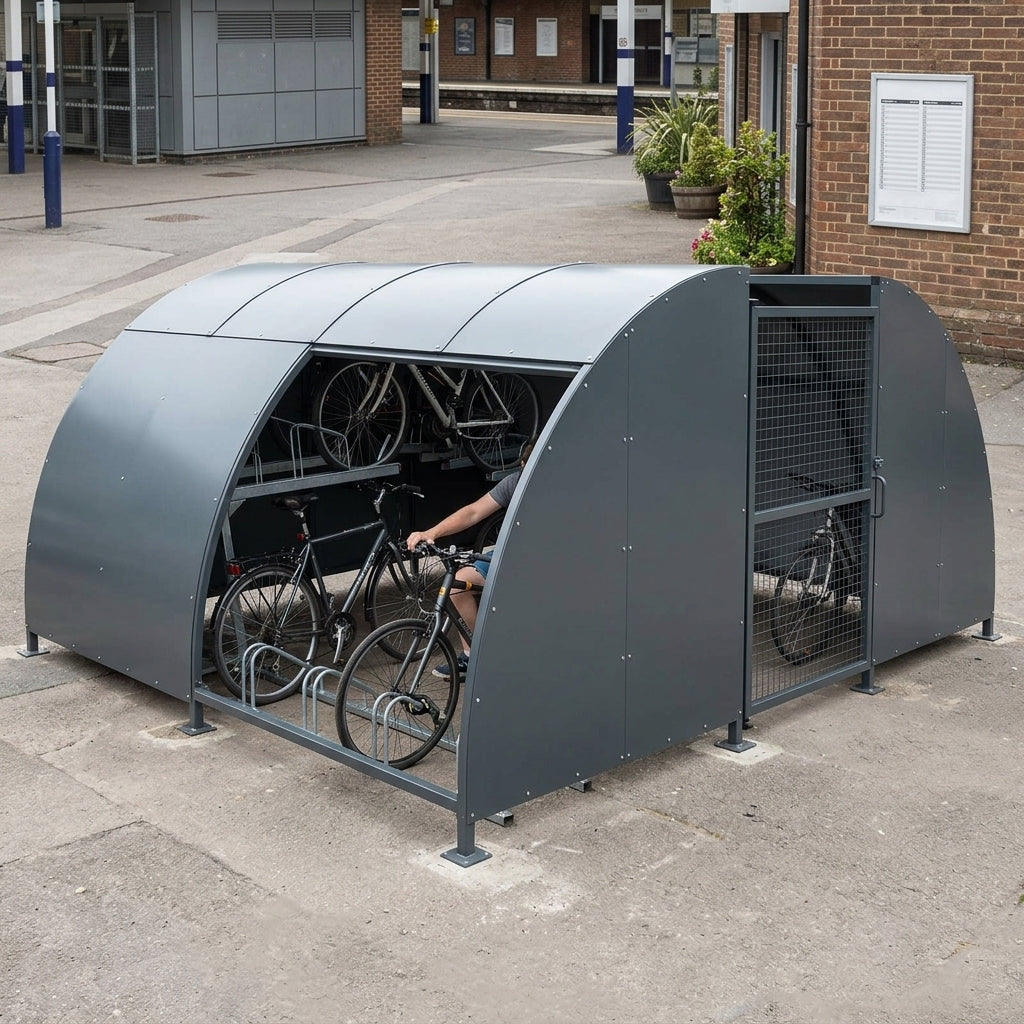

5.5m Wide Galvanised Steel Cycle Shelter with Mesh Door

Galvanised mild steel cycle shelter with curved roof, mesh door and integrated cycle stands.

A self-contained, modular bike enclosure constructed from 1mm galvanised steel panels with a curved roof design. The shelter measures 5.5m wide and comes in configurable lengths from 2m to 5m, with extension bays available for longer installations. A secure mesh door accepts a padlock (not supplied) for weather protection and theft prevention.

Key Features

• Curved galvanised steel roof and end panels (1mm gauge)
• Lockable mesh door with padlock provision
• Integrated cycle stands included
• Modular design with extension bays available
• Square flange plates (140mm × 140mm × 10mm) for bolted ground installation
• Front height 2128mm

Specifications

• Width: 5525mm overall
• Lengths: 1m, 2m, 3m, 4m, 5m and extensions
• Material: Galvanised mild steel (1mm panels)
• Flange plate: 140mm × 140mm × 10mm (4 bolts per plate)
• Installation: Bolted assembly on-site

Applications

• Workplace and office bike storage
• Public amenity cycle parking
• Educational institutions
• Transport hubs and stations
• Residential developments
