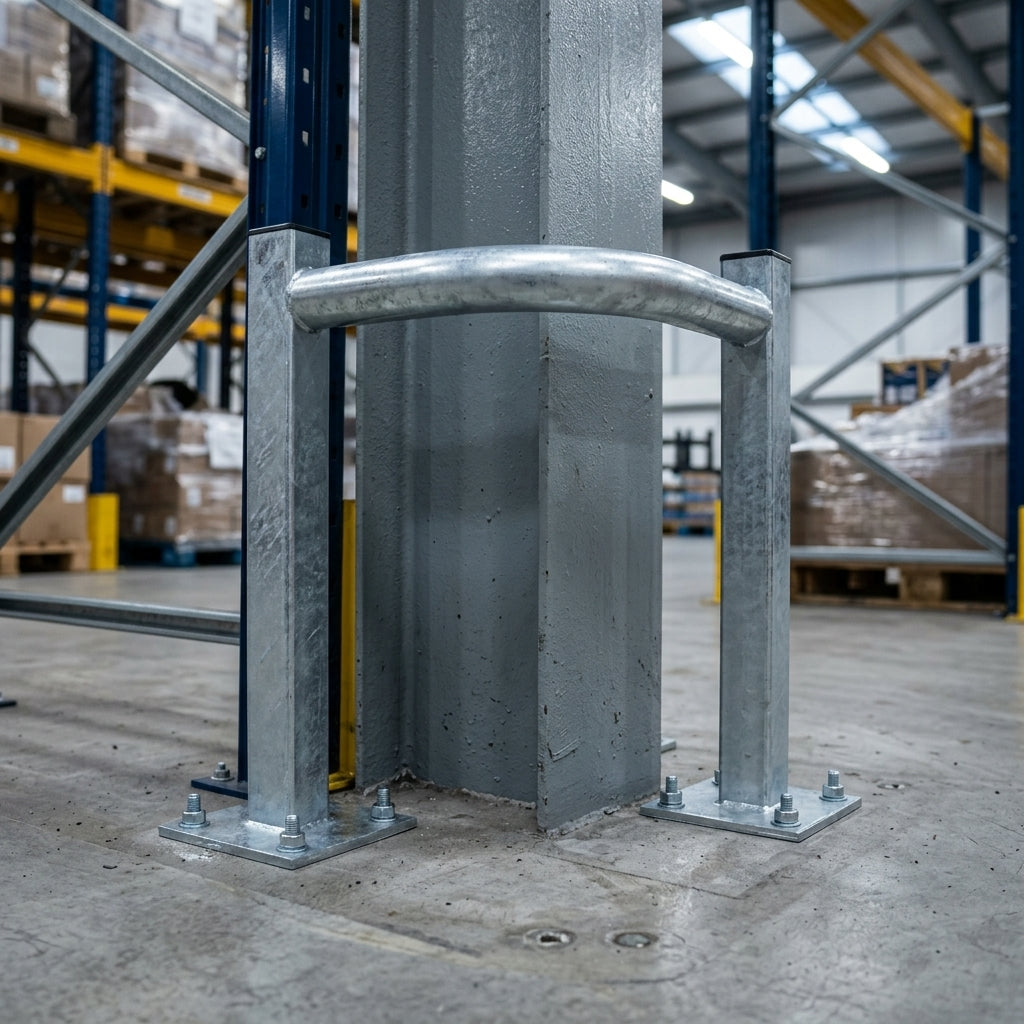

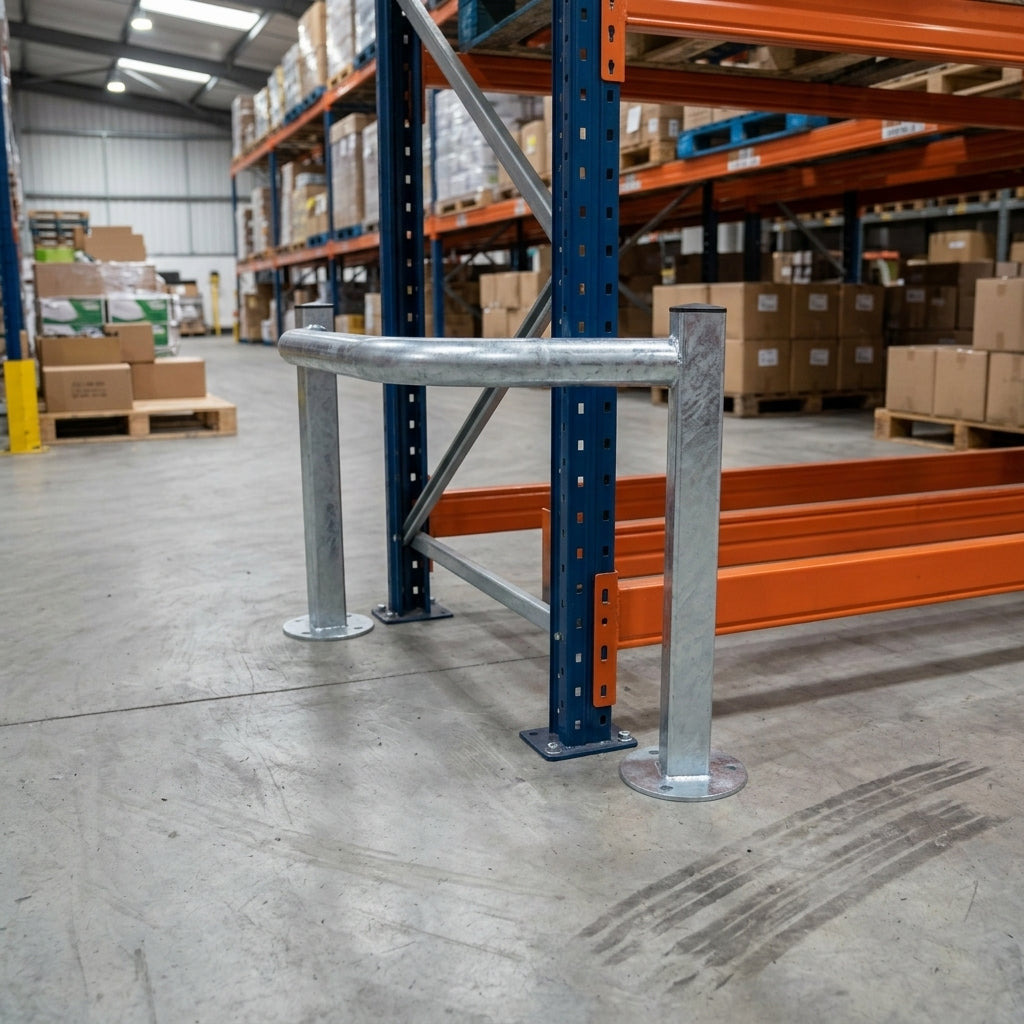

500 × 471mm column corner guard with 48mm tube

Heavy-duty steel corner guard designed to protect EV charging infrastructure and industrial columns from vehicle impact.

This welded steel column protector safeguards charging points, machinery supports and structural pillars in busy industrial and commercial settings. The unit combines galvanising with optional powder coating for reliable performance in both indoor and outdoor environments.

Key Features

• 48mm diameter tube construction with 50 × 50mm square uprights
• Fully welded joints and base plate for strength
• Galvanised finish or galvanised with powder-coat options (RAL/BS colours available)
• Yellow powder coat with 2 × 50mm black reflective bands available
• Suitable for indoor and outdoor use
• Reduces risk of costly structural and equipment damage

Specifications

• Height: 500mm
• External width: 471mm
• Internal width: 460mm
• Tube diameter: 48mm
• Below-ground concrete fixing depth: 300mm
• Fixing options: root fixed or surface mounted
• Finish options: galvanised, galvanised with powder coat (custom RAL/BS), or galvanised with yellow powder coat and reflective bands

Applications

• EV charging station protection
• Industrial column and pillar safeguarding
• Machinery support protection
• Vehicle impact barriers in warehouses and logistics facilities
• Outdoor asset protection in harsh weather conditions
