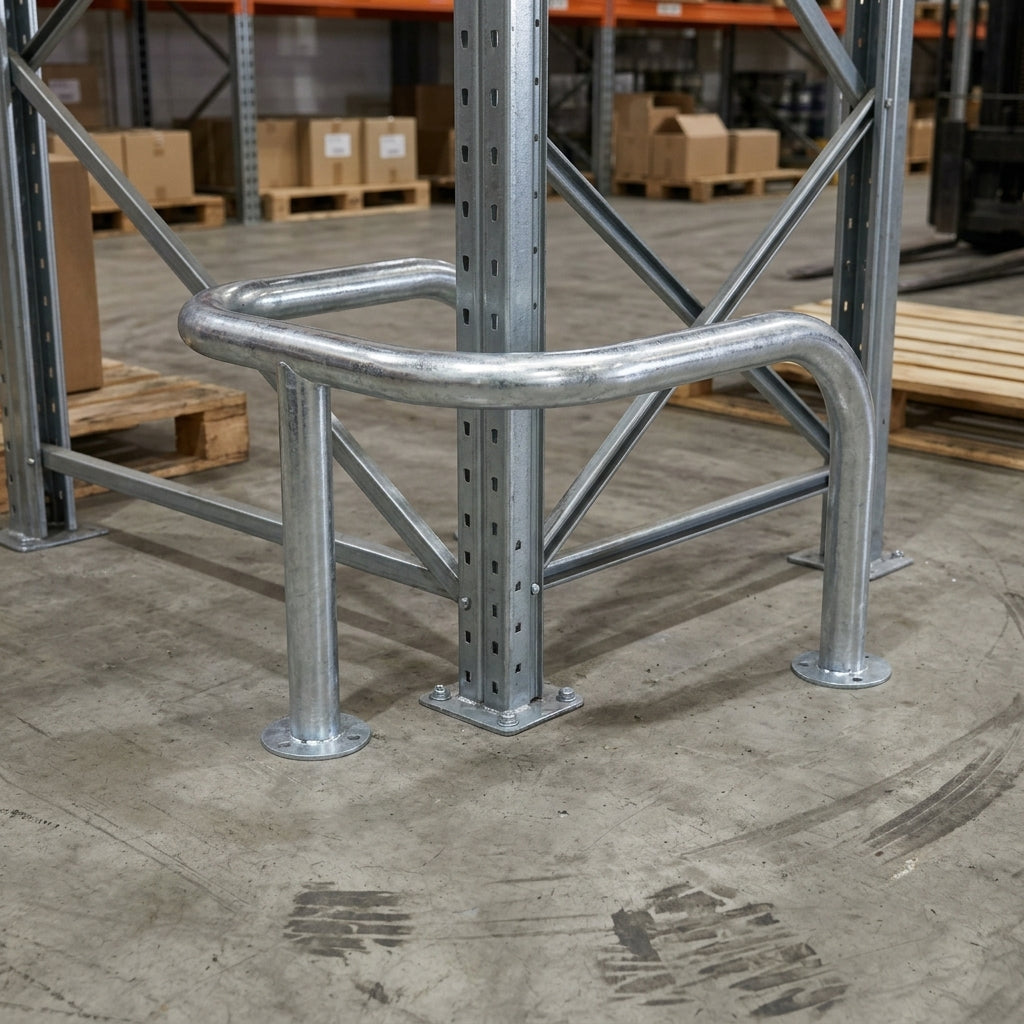

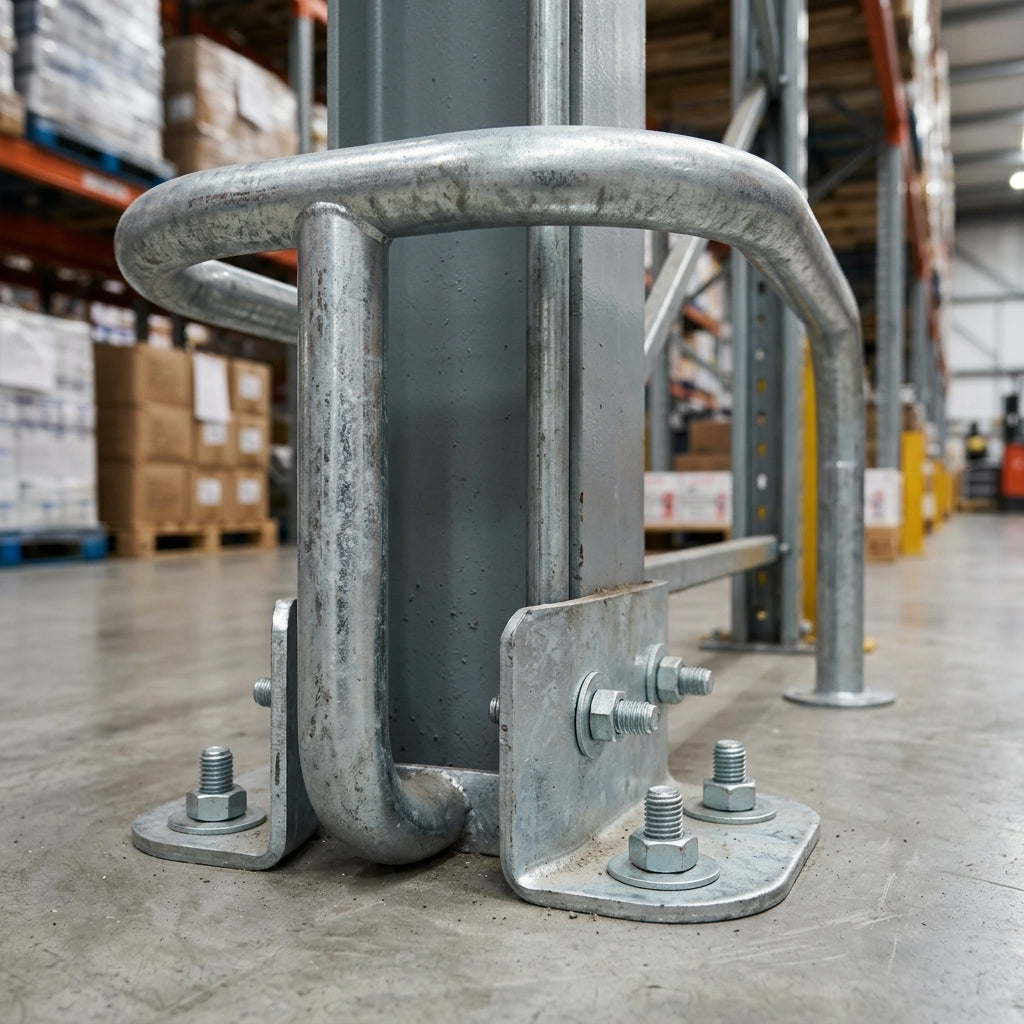

500 × 700mm EV charging point column protector, mild steel

Robust mild steel column guard designed to protect EV charging points and pillars from vehicle impact in busy industrial settings.

This heavy-duty corner protector combines functional design with durable construction, featuring fully welded joints and base plates for maximum strength. Manufactured from mild steel with hot-dip galvanising as standard, it withstands harsh outdoor conditions and corrosive environments. Available in galvanised finish, or galvanised with powder coat yellow plus black reflective bands for enhanced visibility.

Key Features

• 60mm diameter steel tube construction
• Fully welded joints and reinforced base plates
• Hot-dip galvanised for corrosion protection
• Optional powder coat finishes (RAL/BS colours on request)
• High-visibility yellow with reflective black bands option
• Root-fixed or surface-mounted installation

Specifications

• External dimensions: 500mm height × 700mm width
• Internal width: 580mm
• Tube diameter: 60mm
• Ground penetration depth: 300mm (root-fixed option)
• Suitable for internal and external use

Applications

• EV charging station protection
• Column and pillar impact guards
• Industrial facility asset protection
• Vehicle parks and charging hubs
• Commercial and warehouse environments
