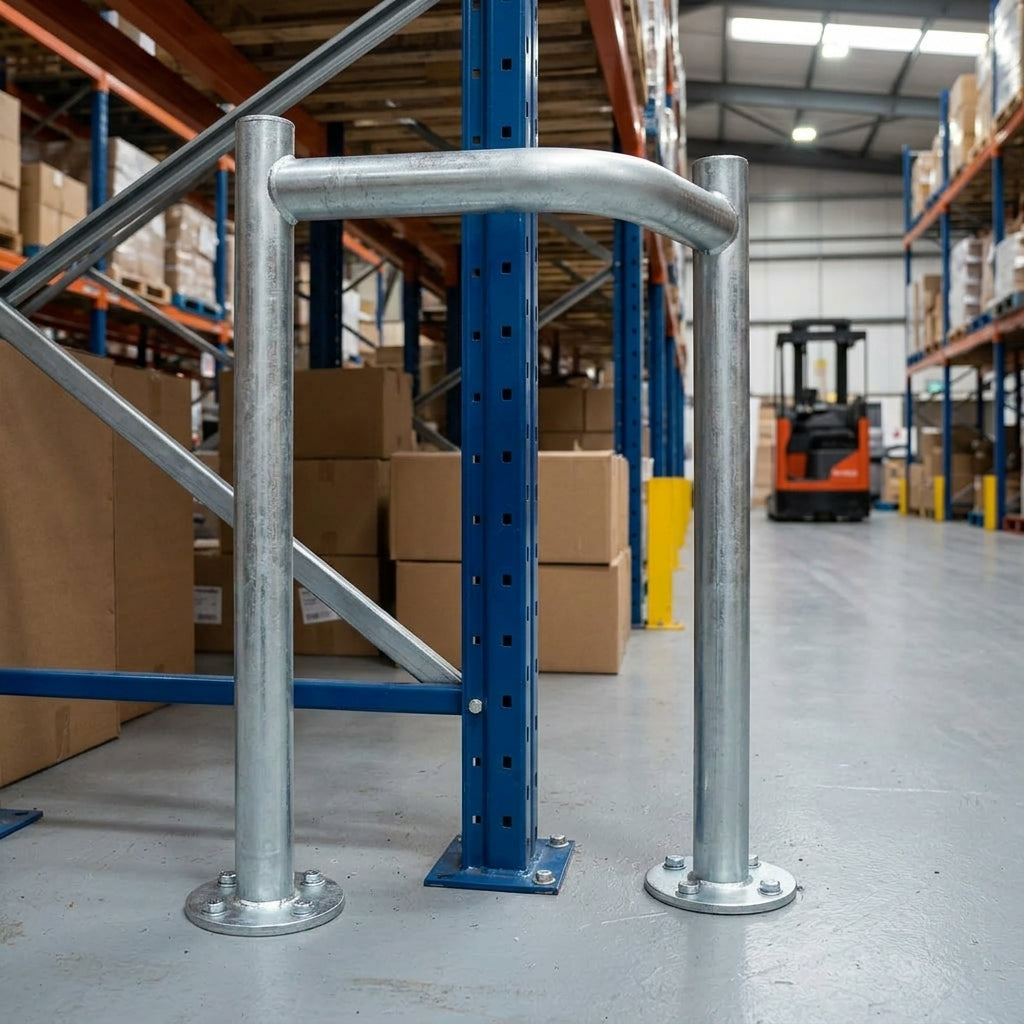

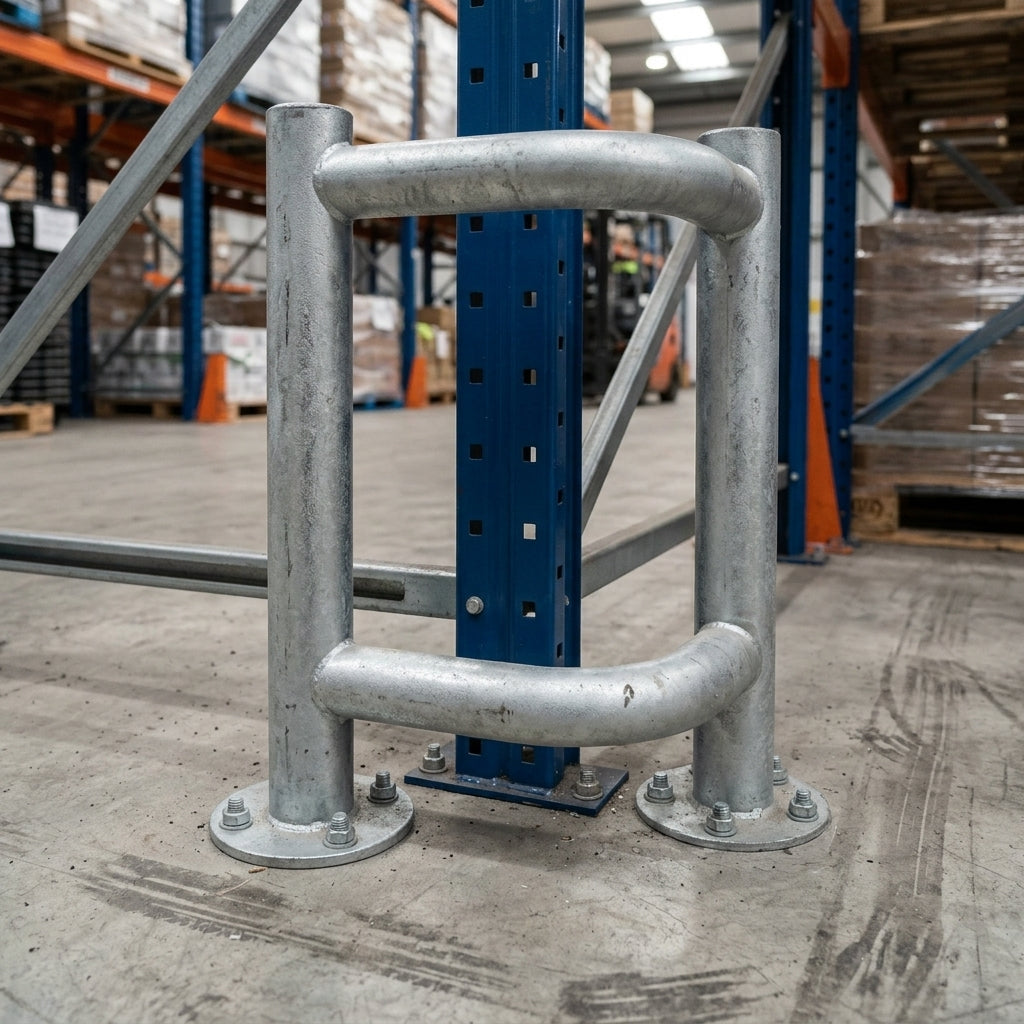

500mm Corner Column Protector Guard – Galvanised Steel

Heavy-duty steel corner protector designed to safeguard columns, pillars and racking from vehicle impact damage in industrial and outdoor environments.

This corner protection guard features a robust welded construction with a 48mm diameter main tube and 50mm square uprights, delivering reliable impact resistance. Available in galvanised finish or galvanised with yellow powder coat and black reflective bands for high-visibility applications. Choose between root-fixed (concreted 300mm below ground) or surface-mounted installation to suit your site requirements.

Key Features

• Fully welded joints and base plates for maximum strength
• 48mm diameter tube with 50mm square uprights
• Galvanised or yellow-coated with reflective bands (2 × 50mm width)
• Hot-dip galvanised and powder coated for rust and corrosion protection
• Root-fixed or surface-mounted fixing options
• Protects EV chargers, machinery and racking from vehicle strikes

Specifications

• Overall height: 500mm
• External width: 471mm
• Internal width: 460mm
• Main tube diameter: 48mm
• Upright tube section: 50mm × 50mm square
• Root fixing depth: 300mm below ground (where applicable)
• Material: Mild steel, galvanised and/or powder coated

Applications

• Racking and storage facility protection
• Industrial warehouse column safeguarding
• EV charger impact prevention
• Machinery and equipment protection from vehicle damage
• Outdoor industrial and commercial sites
