500mm Warehouse Column Protector Guard, Galvanised Steel

Heavy-duty steel column protector with welded construction and multiple finish options for impact resistance in warehouses and industrial environments.

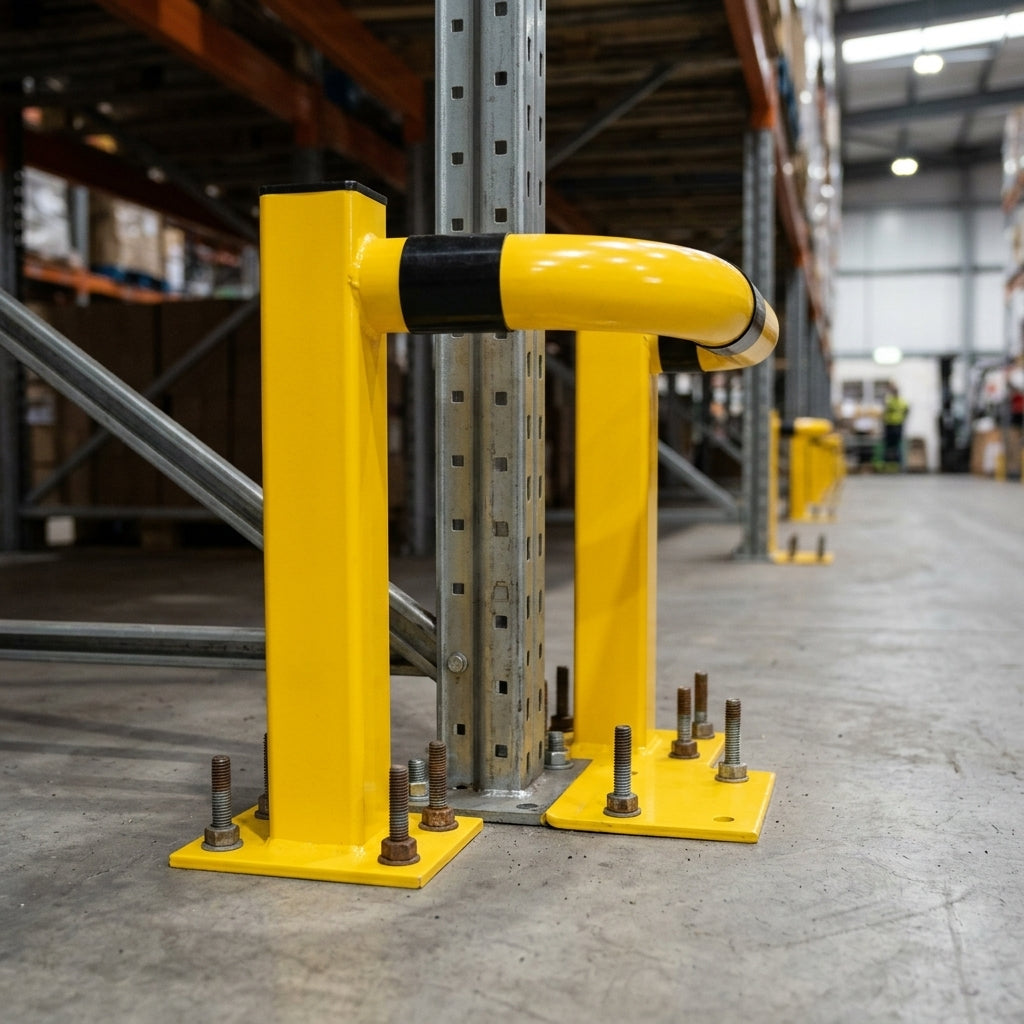

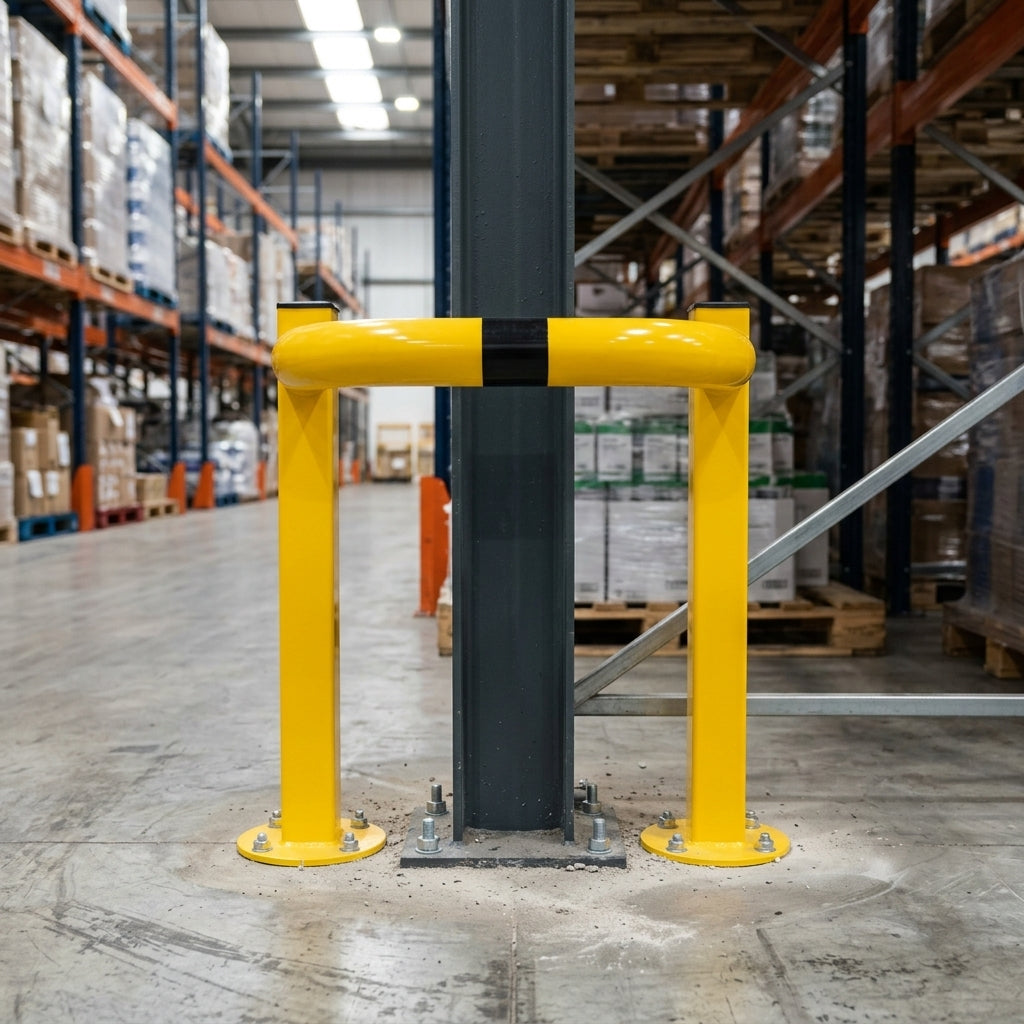

This corner protector safeguards structural columns and pillars from vehicle damage in busy warehouse and industrial settings. Manufactured from mild steel with galvanised finish as standard, it offers robust protection with fully welded joints and reinforced base plate for secure installation.

Key Features

• 48mm diameter tube construction with 50mm × 50mm square tube uprights
• Fully welded joints and base plate for maximum structural integrity
• Available in galvanised, galvanised yellow with reflective bands (3 × 50mm), or custom powder-coated RAL/BS finishes
• Root fixed (300mm concrete foundation) or surface mounted options
• Hot-dip galvanised and powder-coated for outdoor corrosion resistance
• High-visibility finish reduces risk of accidental impacts

Specifications

• Height: 500mm
• External width: 500mm
• Internal width: 400mm
• Main tube diameter: 48mm
• Upright section: 50mm × 50mm square tube
• Underground foundation depth: 300mm (root fixed)
• Finish options: Galvanised, galvanised yellow with black reflective bands, or custom coated

Applications

• Warehouse column and pillar protection
• Industrial building support structures
• EV charger and utility equipment safeguarding
• Vehicle impact zones in storage facilities
• Internal and external industrial environments
