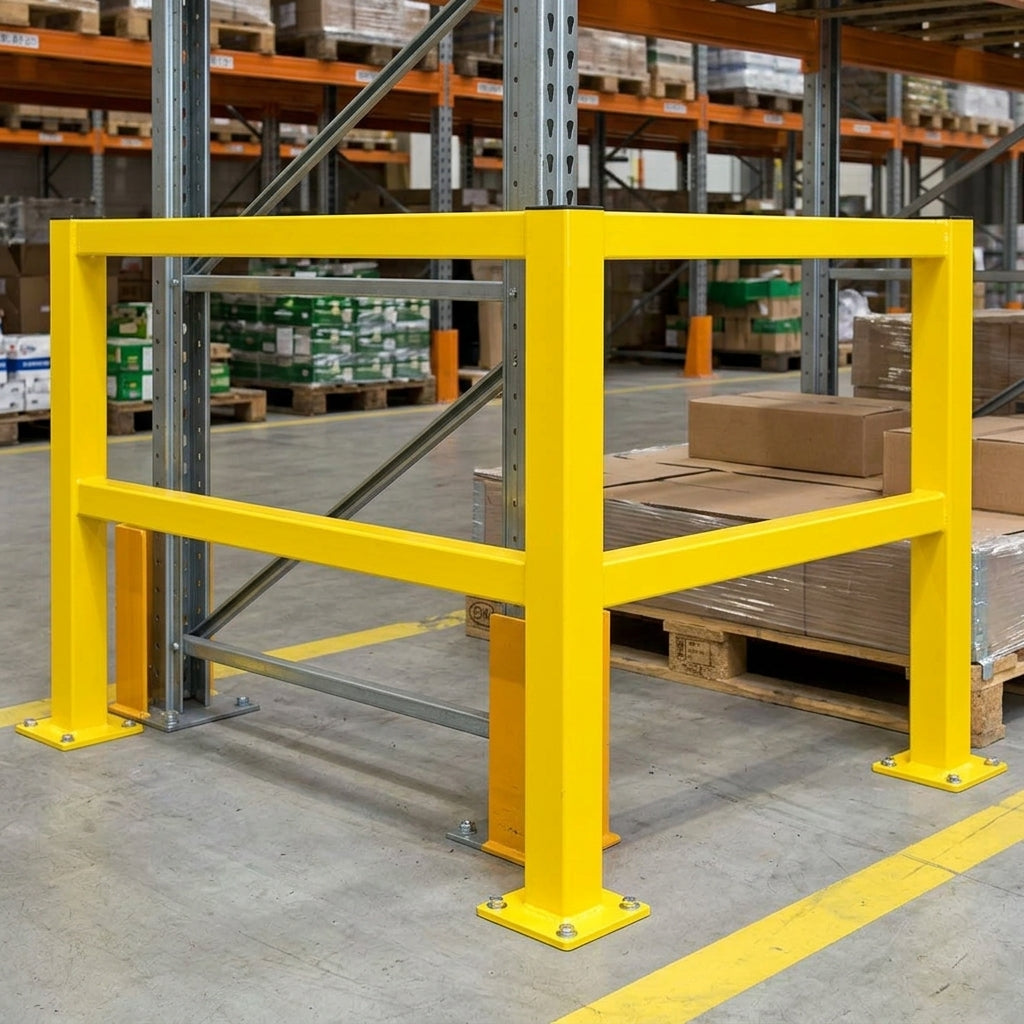

70×70mm medium duty impact protection railing system

Modular medium duty railing system for delineating and protecting machinery and pedestrian pathways from vehicular impact.

This impact protection railing comprises 70×70mm posts with 1000mm height, lateral rails of 60×40×3mm, and a 160×140mm base plate with pre-drilled fixing holes. Available as powder-coated only (indoor) or hot-dip galvanised and powder-coated (outdoor), the system can be extended at any stage and damaged sections replaced individually.

Key Features

• Modular design for rapid installation and future extension
• Counter-sunk bolts secure rails to posts for clean appearance
• Easily replaceable damaged sections

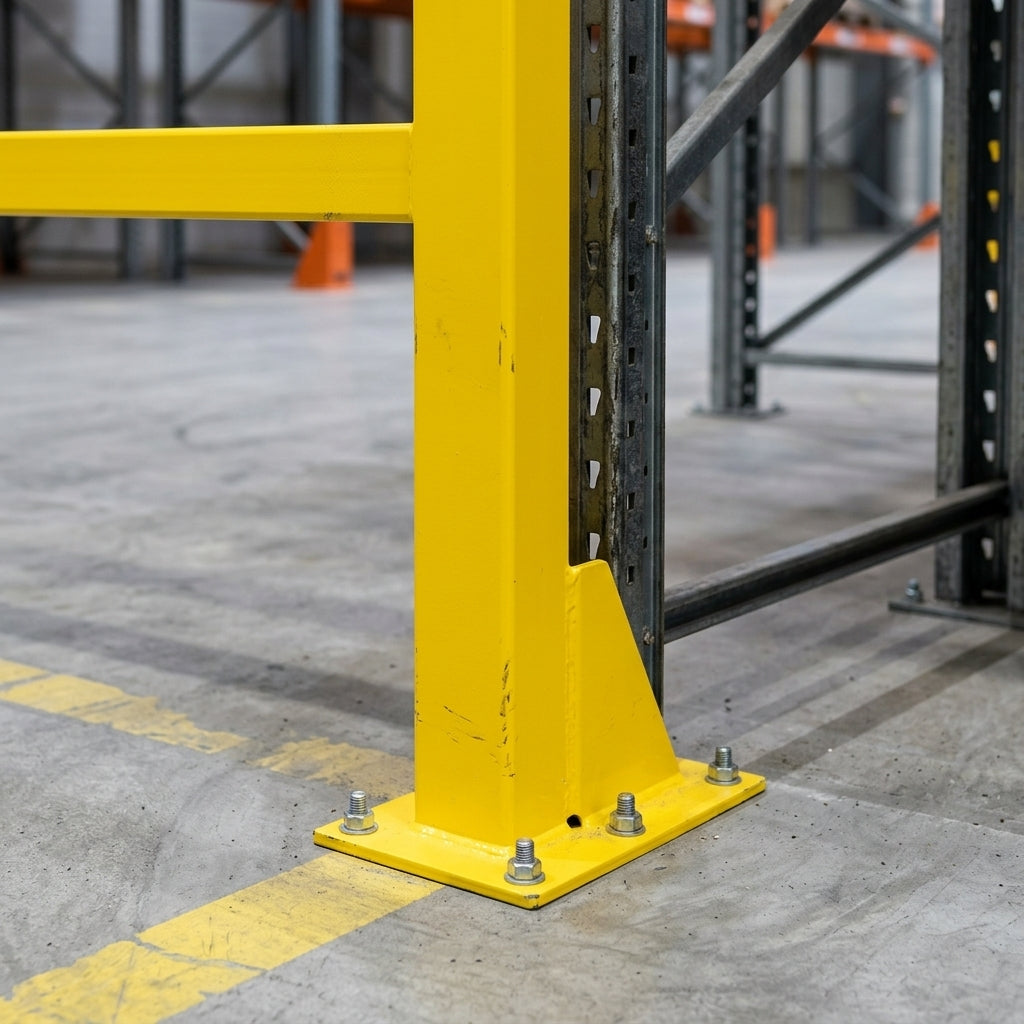

• 160×140×10mm base plate with 4 pre-drilled fixing holes
• Available in powder-coated or galvanised and powder-coated finishes
• Tested according to DGUV 108-007

Specifications

• Post dimensions: 70×70mm
• Height: 1000mm
• Lateral rail dimensions: 60×40×3mm
• Rail lengths available: 1000mm, 1200mm, 1500mm, 2000mm
• Base plate: 160×140×10mm with 4 fixing holes
• Finish options: powder-coated (indoor) or hot-dip galvanised and powder-coated (outdoor)

Applications

• Manufacturing facilities and production areas
• Storage warehouses and distribution centres
• Vehicle storage areas and car parks
• Machinery and equipment perimeter protection
• Pedestrian pathway delineation from vehicular traffic
