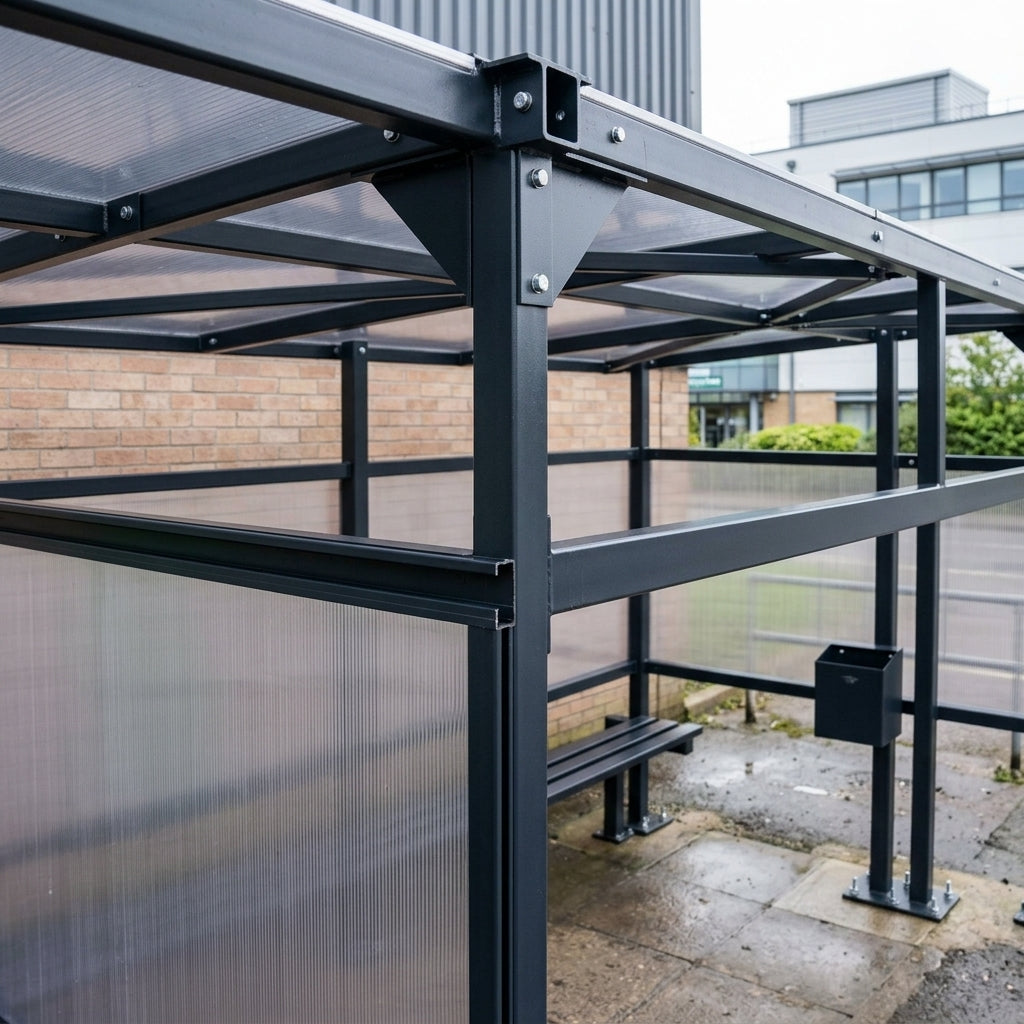

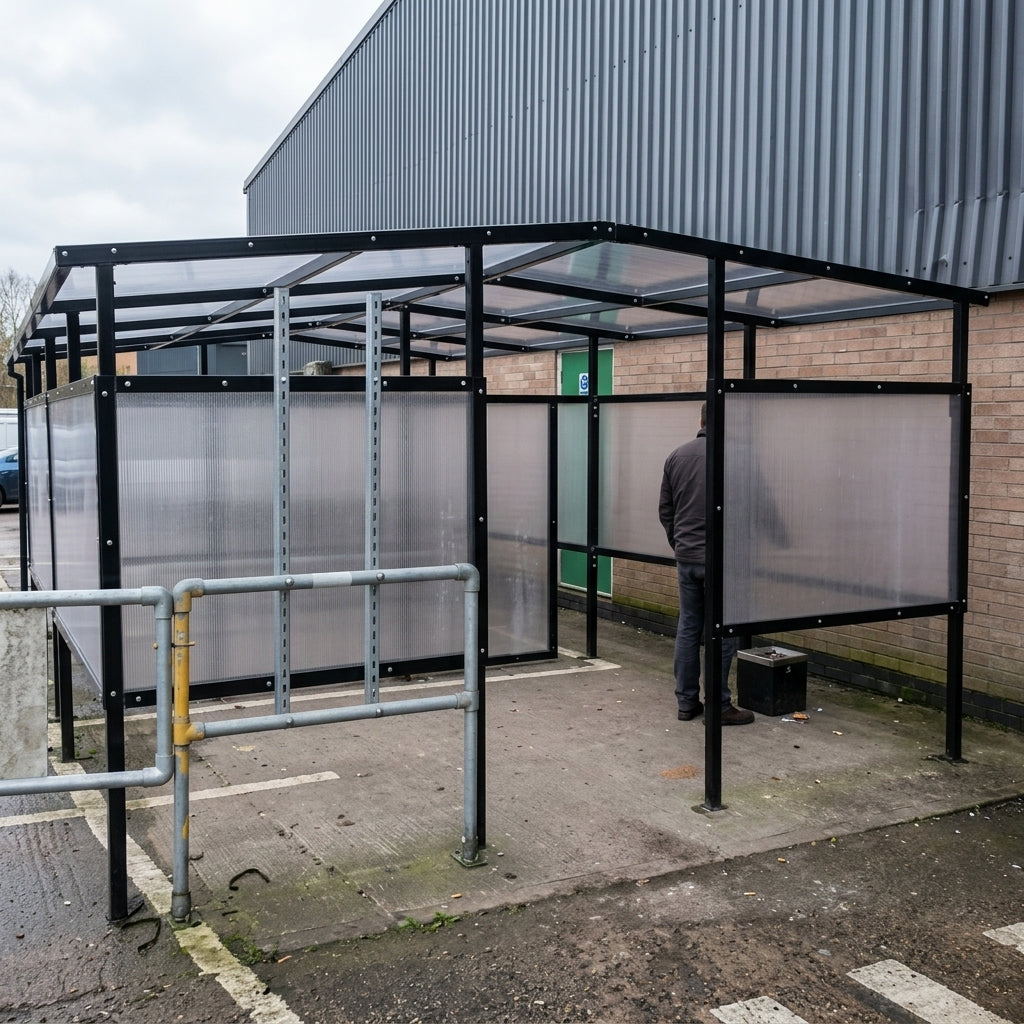

9m x 4m high-capacity smoking shelter, steel frame polycarbonate

High-capacity outdoor smoking shelter engineered for busy commercial environments, accommodating 40+ people with robust steel and polycarbonate construction.

The shelter features a substantial 9m x 4m footprint built from mild steel square section to EN10219:2006 with 6mm twin-wall UV2 polycarbonate panels. The design maintains approximately 50% open area in line with UK smoking shelter guidelines whilst providing effective weather protection. Available with galvanised finish or powder coat in Moss Green RAL 6005 or Traffic Blue RAL 5017, the shelter is supplied with all fixings and ground anchorages for either surface or root fixing installation.

Key Features

• Mild steel Strongbox square section frame to EN10219:2006
• 6mm twin-wall UV2 polycarbonate panels for weather and UV protection
• Galvanised or powder coat finish options in two colour choices
• Accommodates 40+ people comfortably
• Fixed mounting feet with all fixings and ground anchorages included
• Maintains 50% open area as per UK guidelines

Specifications

• Dimensions: 9m length × 4m width
• Frame: Mild steel to EN10219:2006
• Panels: 6mm twin-wall polycarbonate, UV2 grade
• Finishes: Galvanised or powder coat (Moss Green RAL 6005 or Traffic Blue RAL 5017)
• Fixing options: Surface mounted or root fixed
• All hardware and ground fixings supplied

Applications

• Commercial venues and hospitality spaces
• Large workplace outdoor smoking areas
• High-traffic public facilities
• Hotels and restaurants
• Business parks and office complexes
