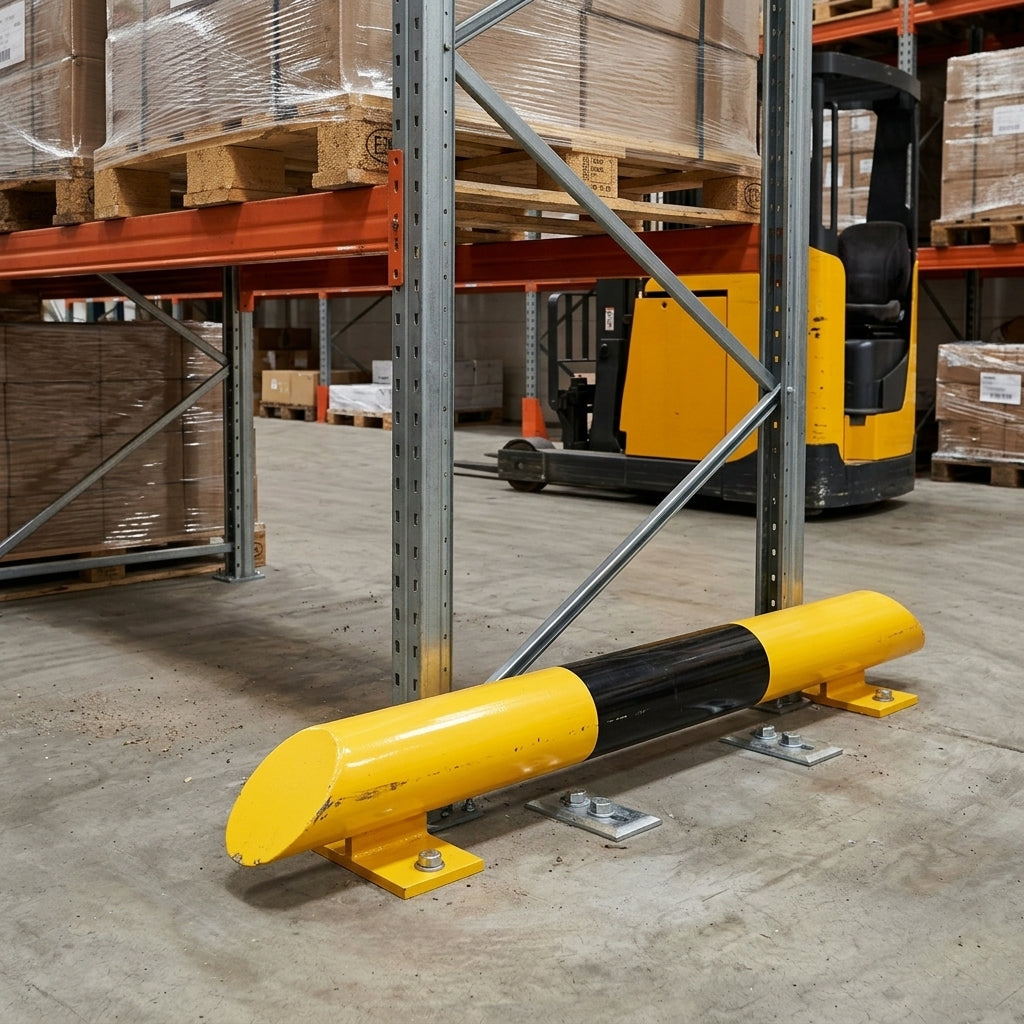

Collision Protection Bars – 400–1200mm lengths, corner options

Economical tubular collision barriers for protecting machinery, shelving and wall-mounted equipment against impact from mobile handling equipment.

These protection bars feature a low-profile design that allows easy pedestrian access while defending vulnerable plant and infrastructure. Quick installation using fixing bolts to secure base plates, suitable for interior applications. Available in straight sections of 400mm, 800mm and 1,200mm, plus corner variants measuring 638 × 638mm.

Key Features

• 76mm diameter tubing with 3mm wall thickness
• 86mm overall height for low-profile installation
• 10mm thick pre-drilled base plates with 2 fixing holes per straight section
• Powder-coated yellow with black bands for visibility
• Fast installation with 4 bolts (straight bars) or 6 bolts (corner sections)
• Interior use; corner sections available to order with 10–15 day lead time

Specifications

• Lengths: 400mm, 800mm, 1,200mm, or corner 638 × 638mm
• Height: 86mm
• Diameter: 76mm with 3mm wall thickness
• Base plates: 10mm thick, pre-drilled with 2 fixing holes
• Finish: Powder-coated yellow with black bands

Applications

• Protect industrial shelving units from trolley and pallet truck collisions
• Safeguard wall-mounted cabinets, control panels and electrical switchgear
• Shield first aid stations, instrument racks and process equipment
• Warehouse and factory interior perimeter or machinery zone barriers
