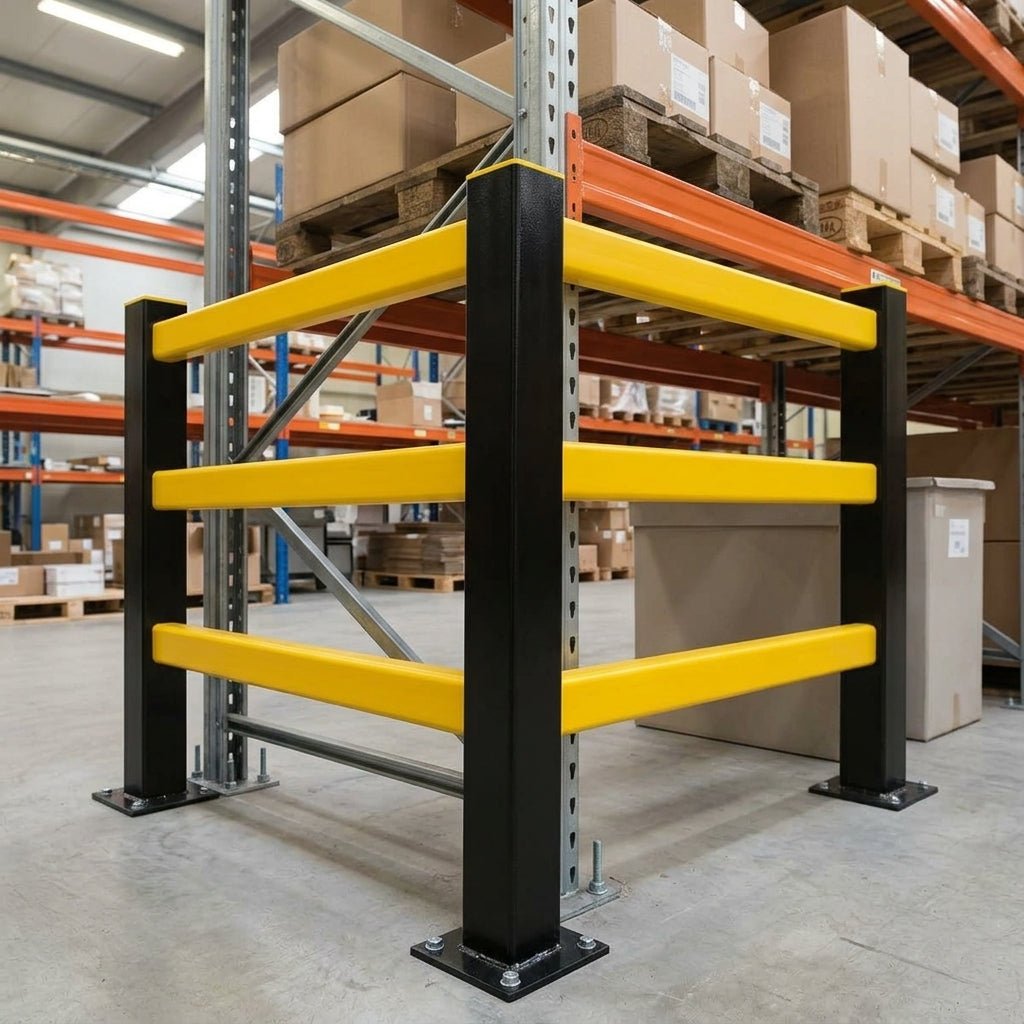

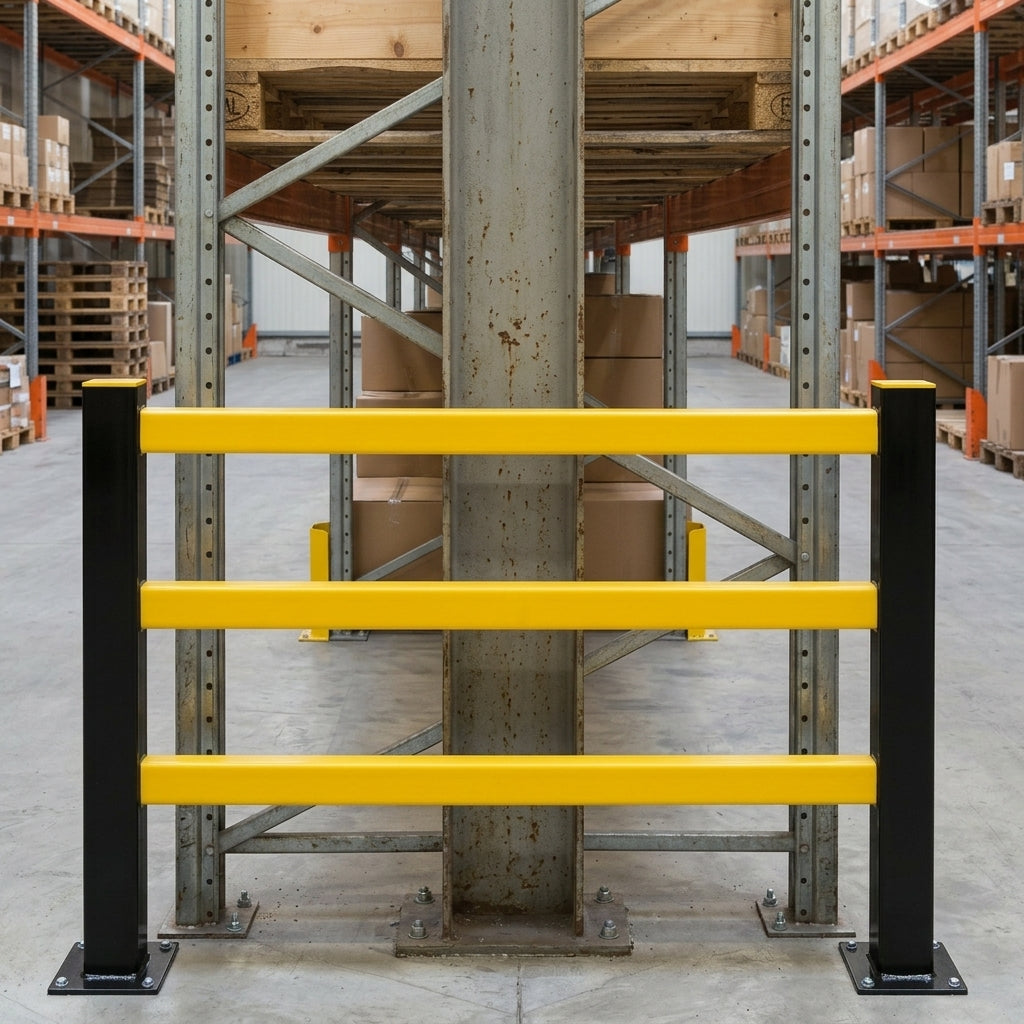

Column protection barrier 1,000mm steel posts with polypropylene rails

Impact-absorbing column protection barrier combining rigid or flexible steel posts with polypropylene lateral rails.

This hybrid barrier system safeguards personnel and infrastructure in confined workplace areas including walkways, entrances and exits. Two configurations offer flexibility: rigid steel posts with standard lateral rails, or posts equipped with polyurethane pads permitting up to 175 mm deflection to dissipate impact energy and minimise floor damage.

Key Features

• Steel posts with 3 mm wall thickness and 200 × 200 mm base plates
• Three polypropylene lateral rails (74 × 52 mm profile) in yellow
• Optional polyurethane pad system for 175 mm maximum deflection
• Powder-coated black finish on steel components
• Indoor use; semi-rigid or fully flexible configurations
• Available in 1,000 mm, 1,500 mm and 2,000 mm widths

Specifications

• Post dimensions (standard): 1,000 × 100 × 100 mm
• Post dimensions (with PU pad): 1,040 × 100 × 100 mm
• Base plate: 200 × 200 × 10 mm
• Lateral rail lengths: 1,100, 1,600 and 2,100 mm
• Wall thickness: 3 mm
• Materials: Steel posts, polypropylene rails, polyurethane pads (optional)

Applications

• Column and pillar protection in warehouses and industrial facilities
• Walkway perimeter guarding
• Personnel safety at entrance and exit zones
• Goods handling areas requiring impact damage mitigation
• Indoor workplace hazard containment
