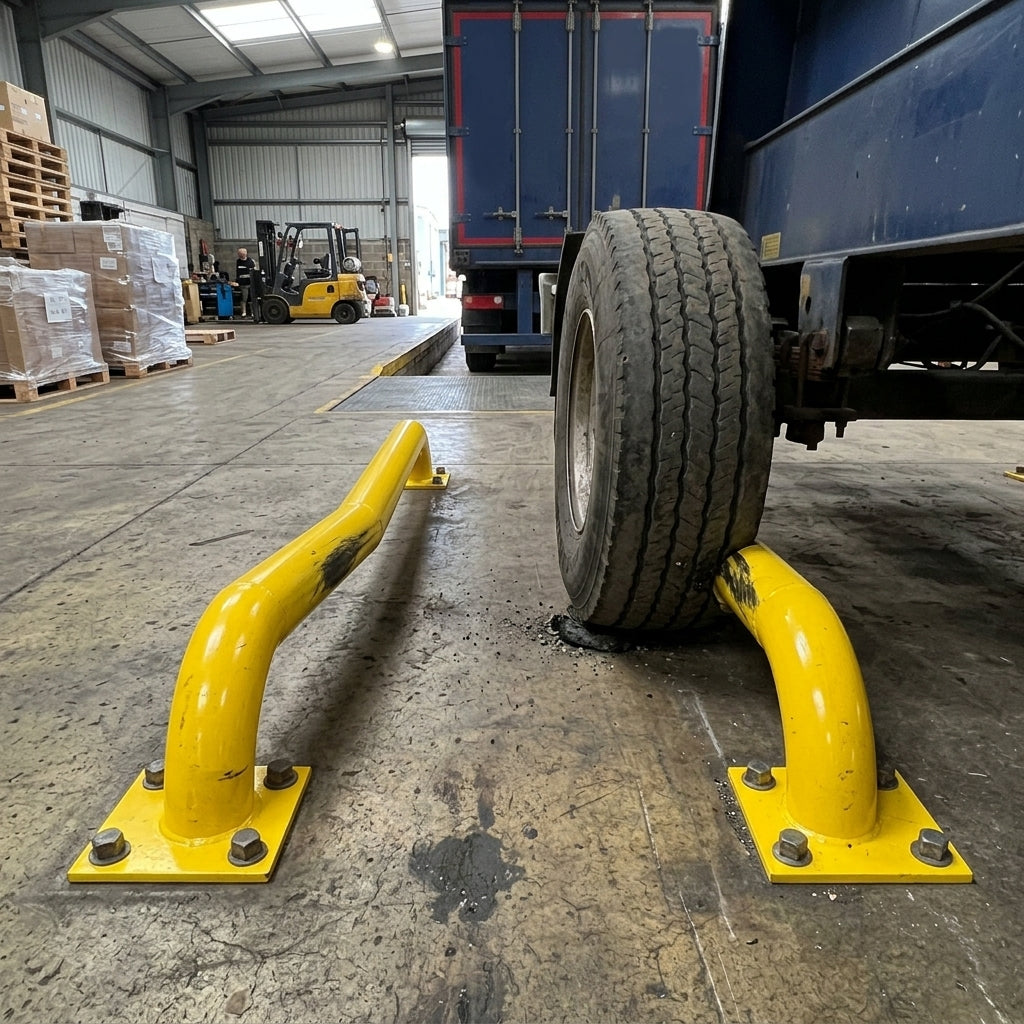

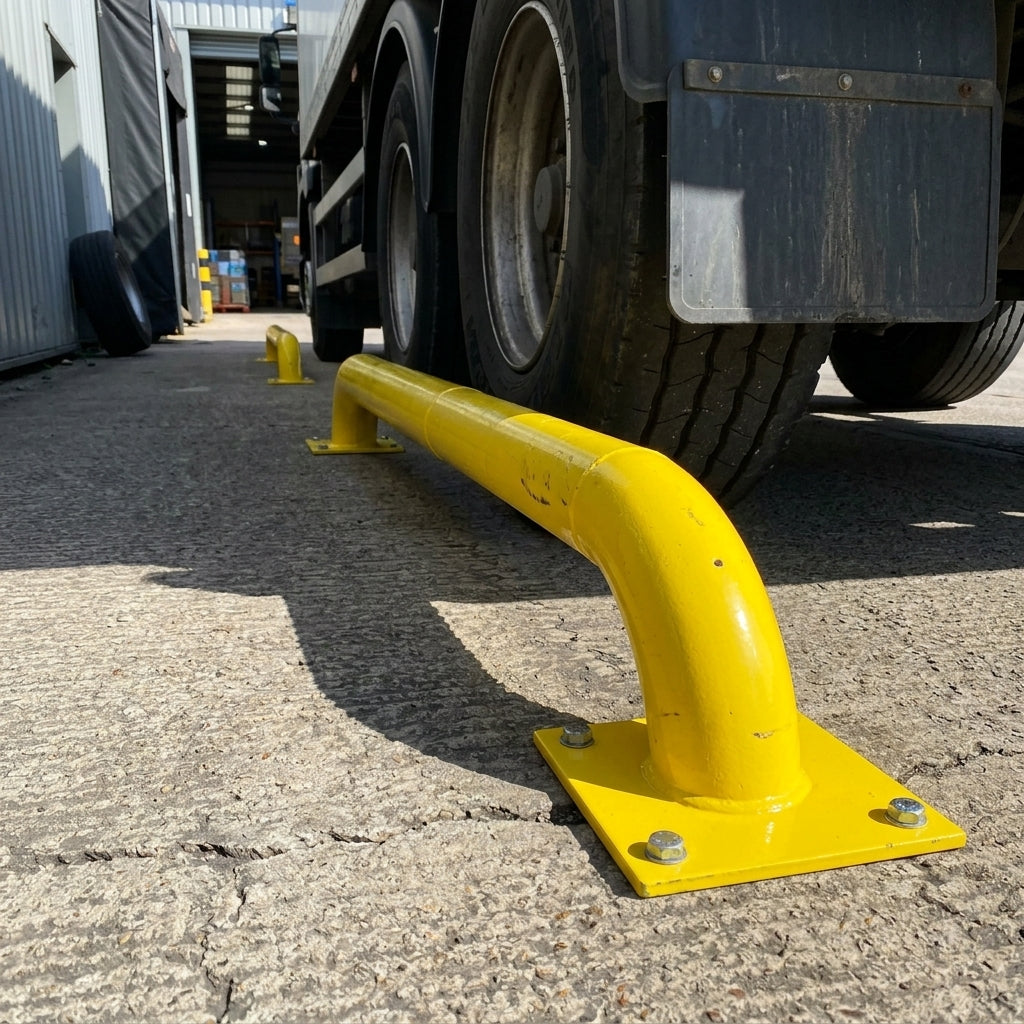

Cranked HGV Wheel Guide 1800mm – Galvanised Steel Pair

Heavy-duty cranked wheel guides for safe HGV reversing and equipment protection in loading bays and warehouses.

These galvanised mild steel guides provide a solid kerb edge to prevent collision damage during reversing manoeuvres and forklift operations. Available in 139mm or 168mm diameter with 1800mm length, supplied as left and right hand pairs with optional yellow powder coat for enhanced visibility.

Key Features

• Cranked design with 15° angle for optimal vehicle guidance
• Galvanised or galvanised with yellow powder coat finish
• Bolt-down mounting with 250mm square base plate
• 5mm wall thickness for durability
• Supplied as matching pair (one left, one right hand crank)
• Two diameter options: 139mm or 168mm

Specifications

• Length: 1800mm
• Diameter: 139mm or 168mm
• Base plate: 250mm square × 10mm thick
• Overall height: 320mm
• Wall thickness: 5mm
• Crank angle: 15°
• Fastening: 8 × 18mm bolts per guide (bolts not included)
• Material: Mild steel, galvanised

Applications

• HGV and delivery truck reversing bays
• Warehouse and factory floor edge protection
• Racking and equipment protection from forklift damage
• Vehicle movement control in industrial loading areas
