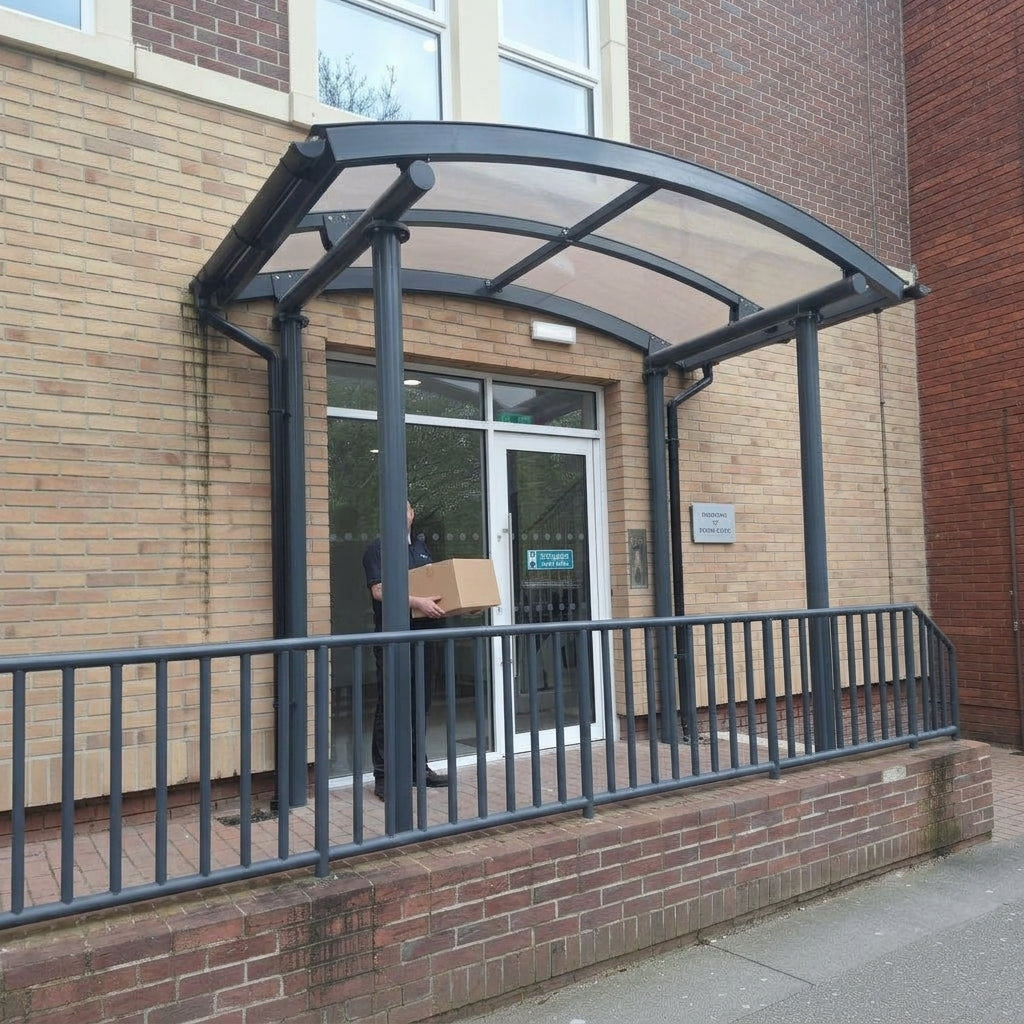

Entrance Canopy 2–5m wide, customisable length up to 20m

Bespoke entrance canopy combining robust hollow section steelwork with clear weather protection and flexible sizing.

This modular canopy system adapts to spaces from 2m to 5m wide and extends from 1m to 20m in length. The structural frame uses heavy-duty 114mm circular hollow section posts and beams, reinforced with 120mm × 60mm and 60mm square hollow section roof components. Clear 5mm UV2 PETG sheeting delivers light transmission and weather resistance, whilst every steel element is galvanised and powder-coated for long-term durability.

Key Features

• Width options: 2m, 3m, 4m, 5m; length customisable in single-metre increments up to 20m
• 114mm circular hollow section posts and beams
• Clear 5mm UV2 PETG roof sheeting
• Galvanised and powder-coated finish with colour selection
• Above-ground or below-ground installation options
• Complete with base plates, ground anchors or ground concreting posts as specified

Specifications

• Post diameter: 114mm circular hollow section
• Roof framing: 120mm × 60mm and 60mm square hollow section
• Roof sheeting: 5mm UV2 PETG, clear
• Finish: Hot-dip galvanised + powder coat
• Installation: Above-ground (bolted base plates) or below-ground (concreted posts)

Applications

• School entrance shelters and drop-off zones
• Public building entrances and foyers
• Protected walkways and covered outdoor areas
• Waiting areas and transit shelter
