Premium Heavy Duty Hose and Cable Ramp 1200mm x 400mm x 155mm for Safe Vehicle Traversal

Hose and Cable Ramp

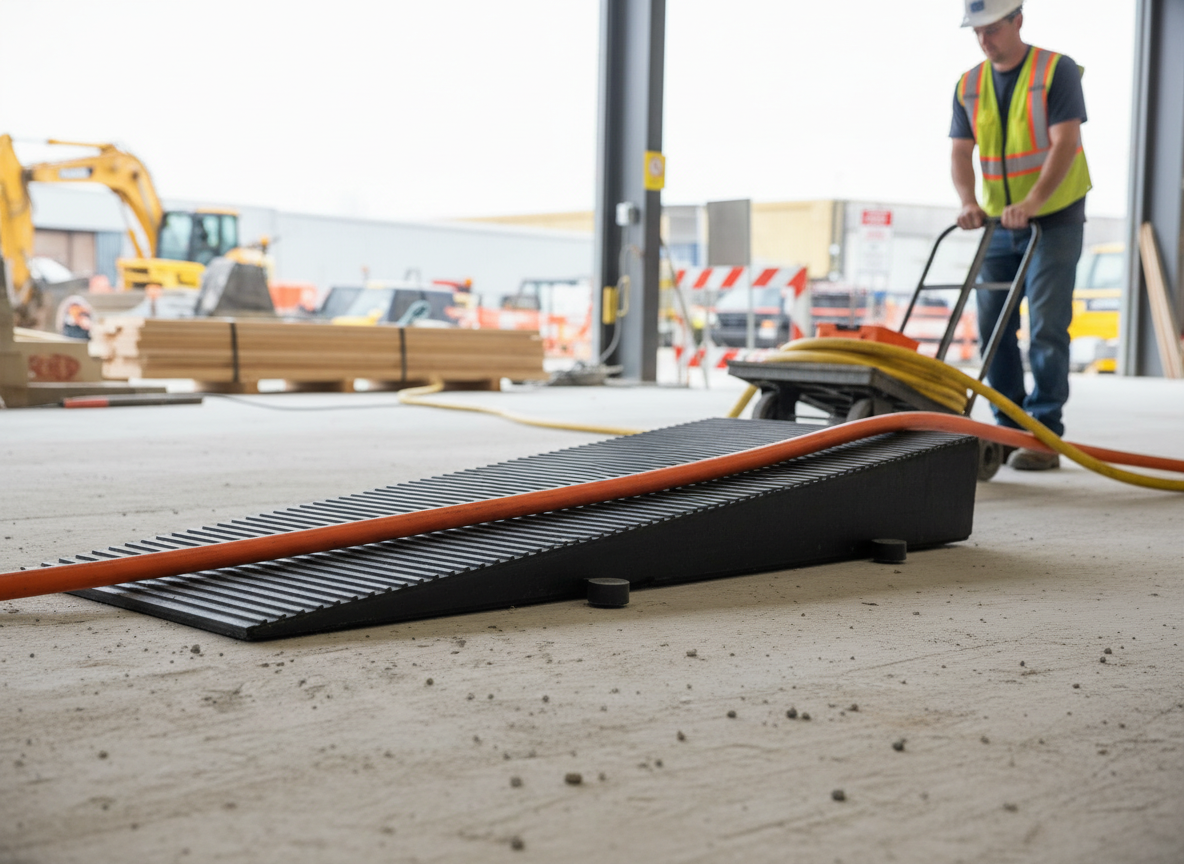

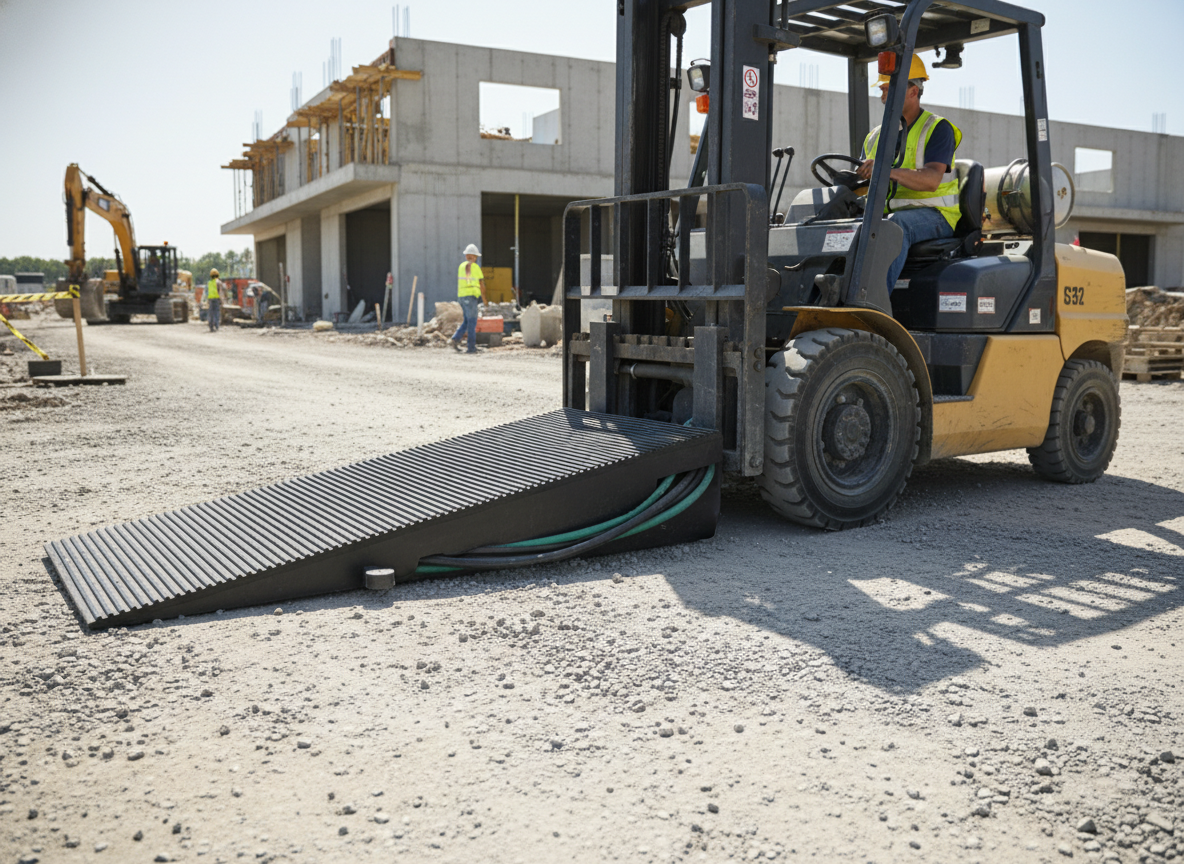

The rubber wedge section for the modular ramp system is designed to accommodate larger diameter hoses ranging from 140mm up to a maximum of 180mm in diameter, depending on the steel bridge section used. This part elevates the vehicle by 155mm above the ground. When used with other rubber elements of this system, it is possible to create a ramp that extends over 3750mm long, enabling most vehicles to traverse the ramp without 'beaching.' The design allows the front wheel to remain in the rubber blocks while the rear wheel ascends the leading edge of the ramp. This variant features a length of 1200mm for a more gradual incline compared to similar options.

Details

• Dimensions: 1200 x 400 x 155mm (max)
• Weight: 42 kg
• Max Load: 44 Tonnes

Dimensions & Specifications

FAQs

• What is the maximum load capacity of the ramp?
  The ramp can support a maximum load of 44 tonnes.
• What diameters of hoses can the ramp accommodate?
  The ramp is designed for hoses ranging from 140mm to 180mm in diameter.
• How high does the ramp elevate vehicles?
  The ramp elevates vehicles by 155mm above the ground.
