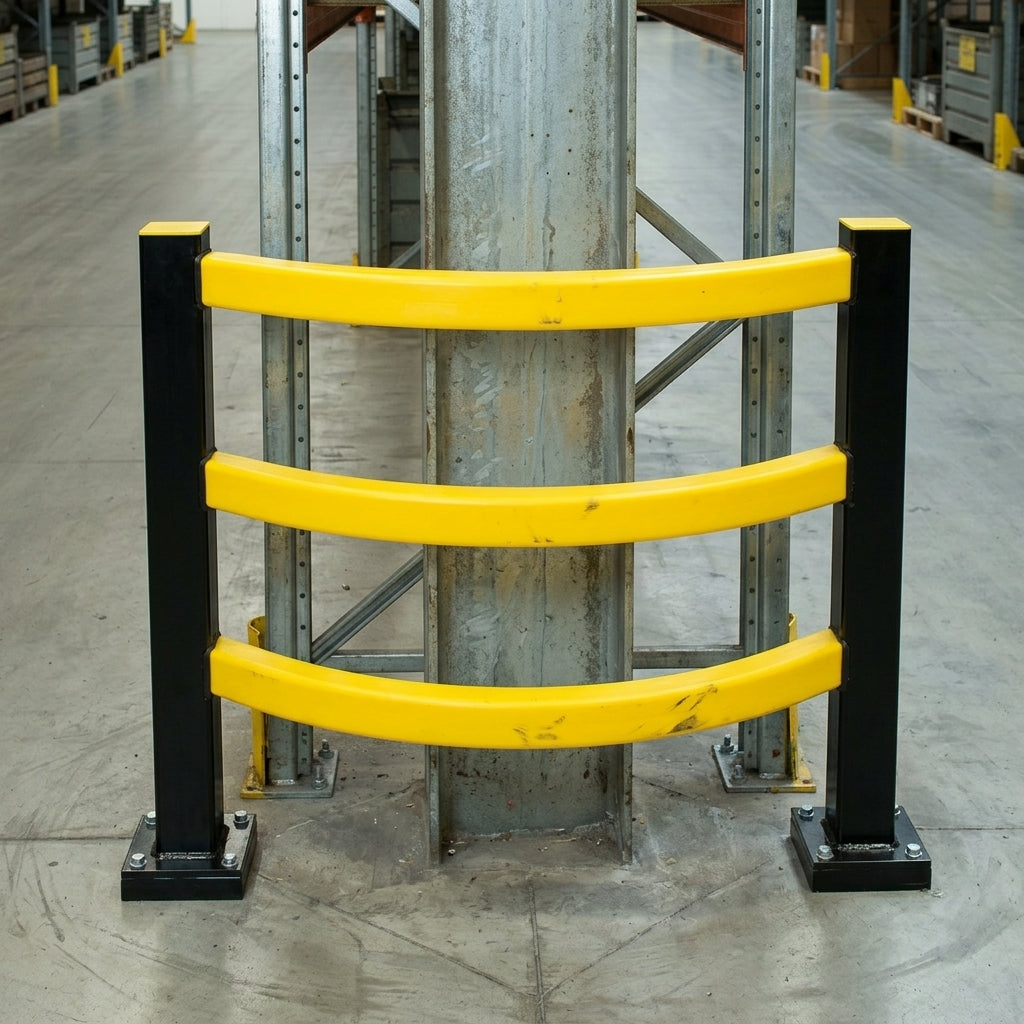

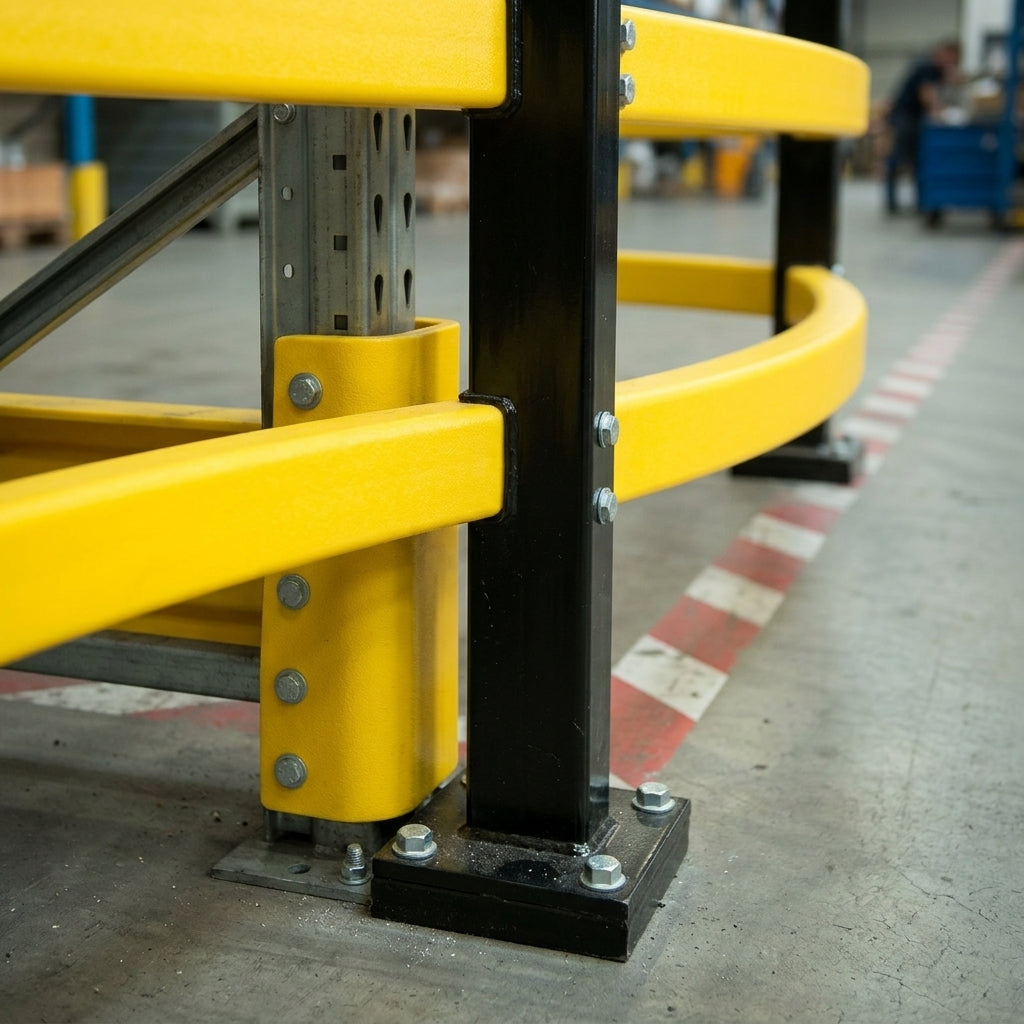

Hybrid steel and polypropylene impact protection railing system

A modular hybrid railing system merging steel posts with flexible polypropylene rails and polyurethane deflection pads for maximum impact absorption.

This impact protection system combines the structural integrity of steel with the resilience of high-grade polypropylene to safeguard personnel, vehicles and property in busy warehouse and industrial environments. Posts are fitted with patented polyurethane pads enabling deflection up to 10° (approximately 17.5 cm), minimising floor stress and repair costs. The system is suitable for both indoor and outdoor deployment with surface mounting installation.

Key Features

• Hybrid construction: resilient steel posts with flexible polypropylene lateral rails
• Polyurethane pads enable controlled post deflection up to 10° angle
• High-grade polypropylene rails provide exceptional impact resistance
• Modular design for customised applications and layouts
• Quick and easy surface-mounted installation
• TÜV-tested to DGUV 108-007 safety standard

Specifications

• Post options: end, mid and corner configurations
• Rail lengths available: 1500 mm, 2000 mm, 2300 mm
• Finish options: powder coated or powder coated and galvanised steel
• Suitable for indoor and outdoor use
• Surface mounting only

Applications

• Segregating traffic lanes from pedestrian walkways
• Forklift lane and pedestrian path separation
• Protecting work areas and sensitive equipment
• Vehicle and personnel collision prevention
