Premium Modular Hose Ramp Block for Large Diameter Hoses - 450 x 400 x 160 mm with 44 Tonnes Max Load

Modular Hose Ramp Block

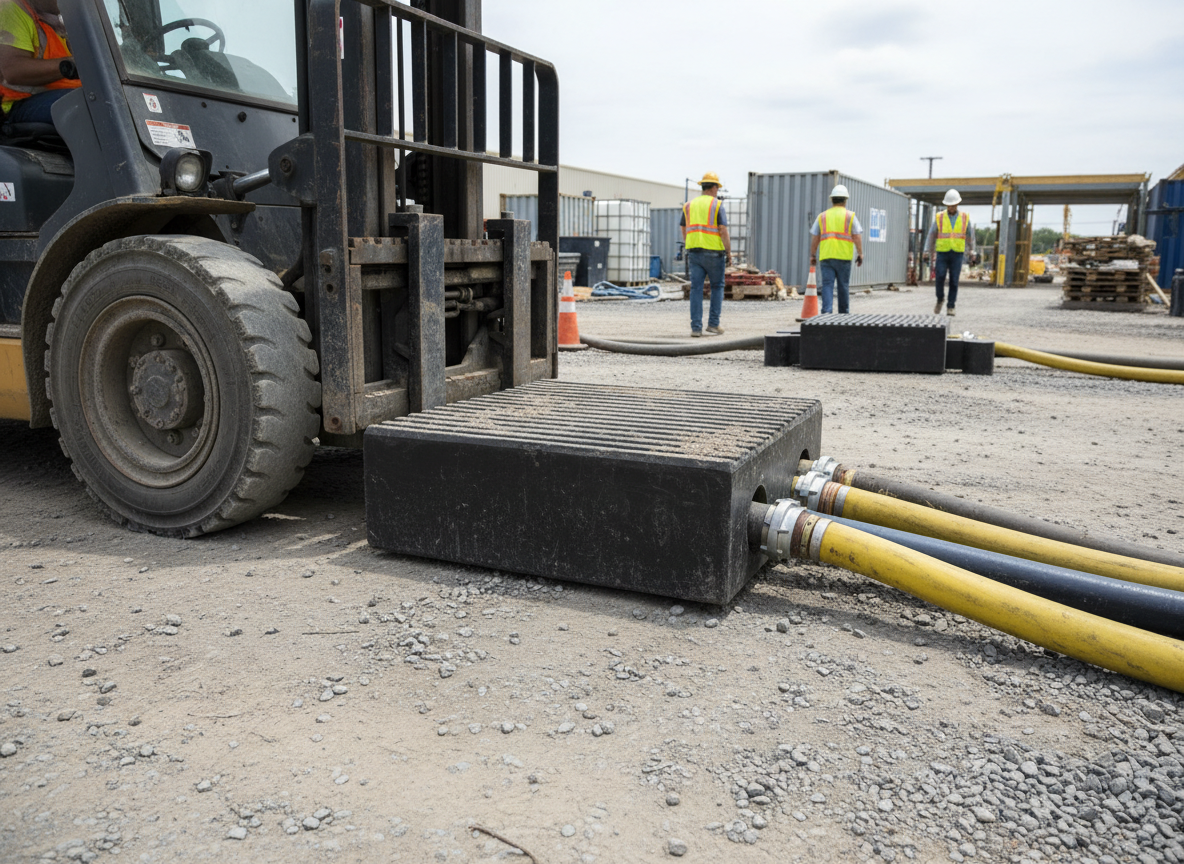

The hose and cable ramp is the rubber block component for the modular ramp system, designed to accommodate larger diameter hoses ranging from 140mm up to a maximum diameter of 180mm, depending on the specific steel bridge part utilized. This particular ramp section elevates vehicles 160mm above the ground.

When combined with additional rubber elements from this system, it is possible to construct a ramp with an overall length of 3400 mm, allowing most vehicles to cross the ramp without the risk of getting 'stranded'. The innovative design ensures that the front wheel remains on the rubber blocks while the rear wheel ascends the front edge of the ramp.

Dimensions & Specifications

Technical Specifications

• Designed for hoses with diameters from 140mm to 180mm
• Elevates vehicles 160mm above the ground for easy access
• Constructed from durable rubber materials for longevity
• Modular design allows for custom ramp lengths up to 3400 mm

FAQs

• What is the maximum load capacity? The ramp block can support up to 44 Tonnes.
• What hose diameters does this ramp accommodate? It is designed for hoses between 140mm and 180mm in diameter.
• How high does the ramp elevate vehicles? The ramp elevates vehicles by 160mm.
