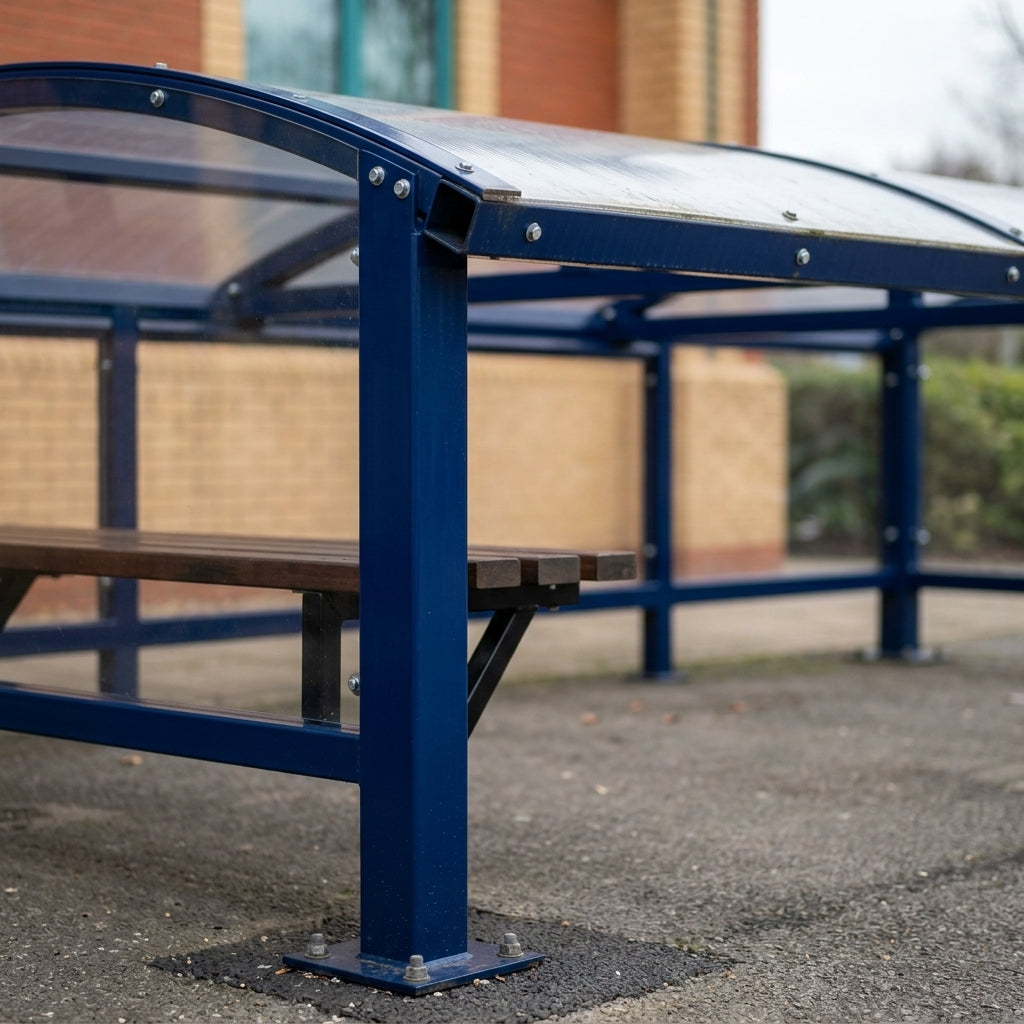

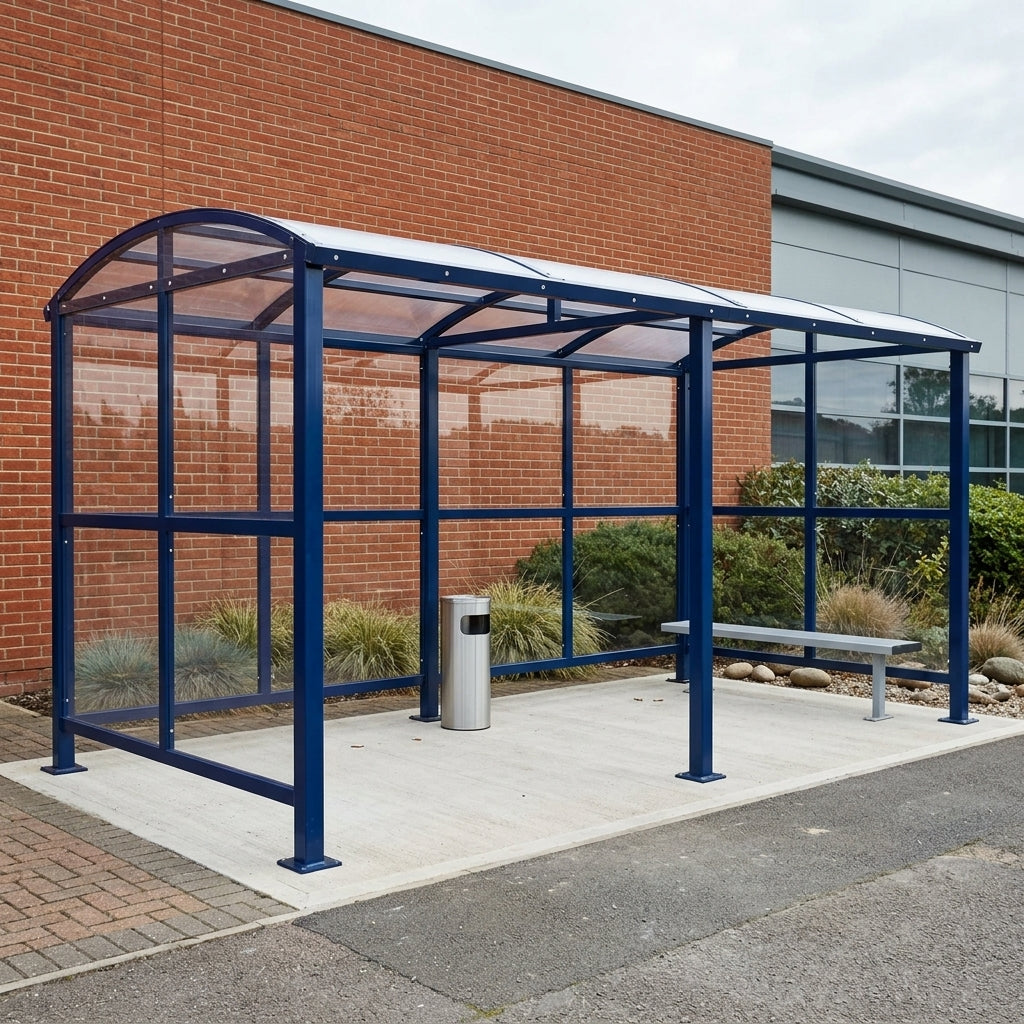

Multi-use smoking shelter, 1950mm roof depth, 3–9m lengths

Galvanised steel modular smoking shelter meeting UK workplace regulations with flexible sizing and weather protection.

A robust outdoor shelter designed for smoking zones, parent waiting areas and general covered waiting spaces. Available in 3m, 6m or 9m lengths with a 1950mm roof depth, the design incorporates roof sheeting, rear panels and half-side panels to maintain the required 50% open area whilst delivering genuine shelter from the elements. Galvanised mild steel construction with powder coat finish and 5mm UV2 sheeting ensure long-term durability in outdoor environments.

Key Features

• Mild steel Strongbox square section frame to EN10219:2006
• 5mm UV2 polycarbonate sheeting roof and panels
• Galvanised and powder coated finish in choice of colours
• Three length options: 3m, 6m or 9m
• 1950mm roof depth for effective weather coverage
• Compliant with UK Health Act smoking shelter requirements (50% open design)
• Optional seating and cigarette bins available

Specifications

• Roof depth: 1950mm
• Lengths: 3m, 6m or 9m
• Frame material: Mild steel to EN10219:2006
• Sheeting: UV2 polycarbonate, 5mm thickness
• Finish: Galvanised with powder coat
• Fixing options: Surface mounted or below-ground
• All fixings supplied

Applications

• Workplace smoking shelters and designated smoking areas
• Staff and visitor waiting zones
• Parent waiting areas at schools and facilities
• Outdoor covered gathering spaces
