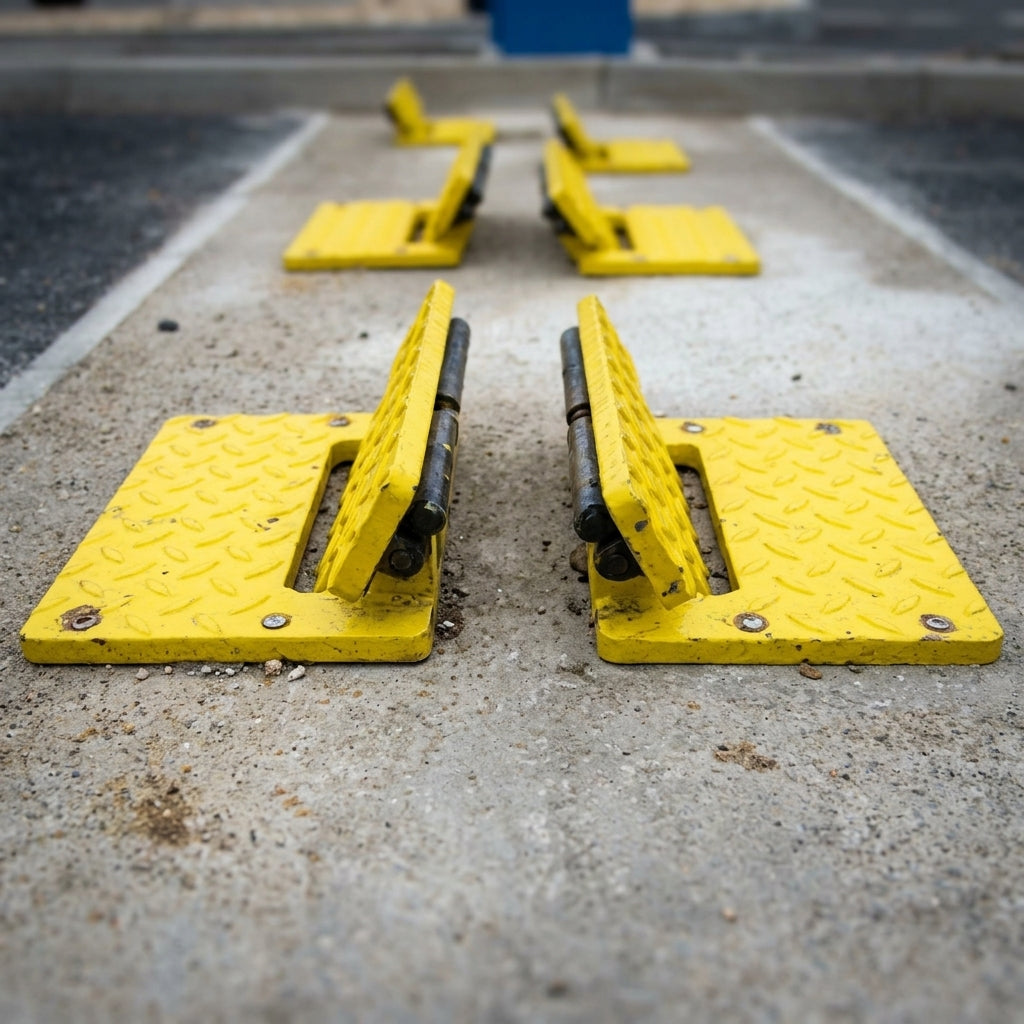

One-way flow plate 200×300mm steel directional traffic control

Galvanised steel directional traffic control plate that permits vehicle passage in one direction only.

The one-way flow plate uses a hinged flap mechanism with integral rubber buffer that depresses under vehicle weight and returns to vertical when the vehicle passes. Manufactured from heavy-duty galvanised steel with yellow powder-coat finish for high visibility. Designed for use in groups to cover full road widths and is not recommended for HGV use.

Key Features

• Hinged flap with rubber buffer minimises noise on vehicle passage
• Galvanised steel construction with yellow powder-coat for durability and visibility
• Available in surface-mounted or cast-in installation options
• Requires minimum 150mm vehicle clearance
• Can be used with speed ramps to achieve 5mph drive-over speed
• Requires good street illumination for adequate visibility

Specifications

• Dimensions: 200mm width × 300mm length × 290mm height
• Material: Galvanised steel
• Finish: Powder-coated yellow
• Cast-in depth: 200mm below ground level
• Minimum recommended vehicle clearance: 150mm

Applications

• Car park and private road access control
• Emergency vehicle routes requiring one-direction traffic flow
• Pedestrian zone protection with controlled vehicle access
• Waste collection and service vehicle routing
