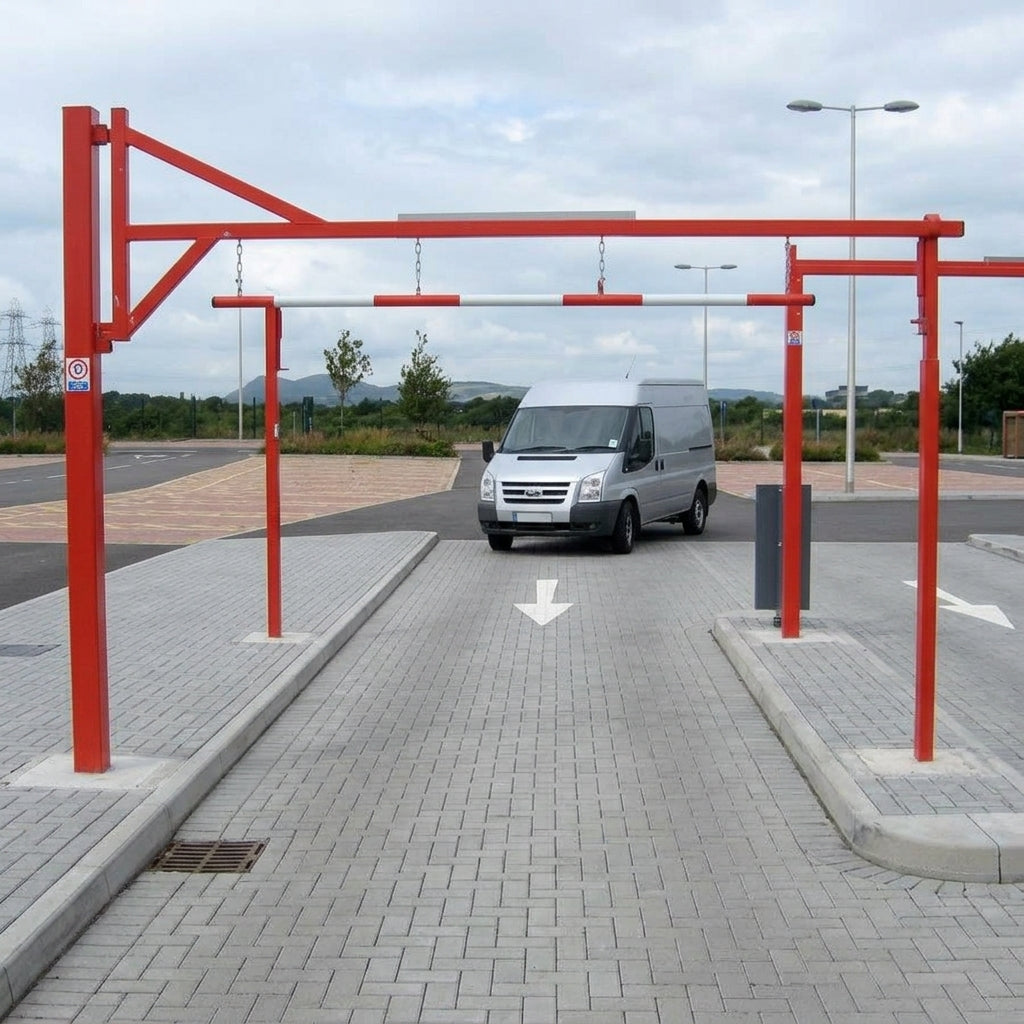

Swing Height Restrictor Barrier 2.05m–2.2m Galvanised Steel

Galvanised steel swing barrier that restricts vehicle access to a standard clearance of 2.05m (with knock bar) or 2.2m (without), ideal for car parks and industrial compounds.

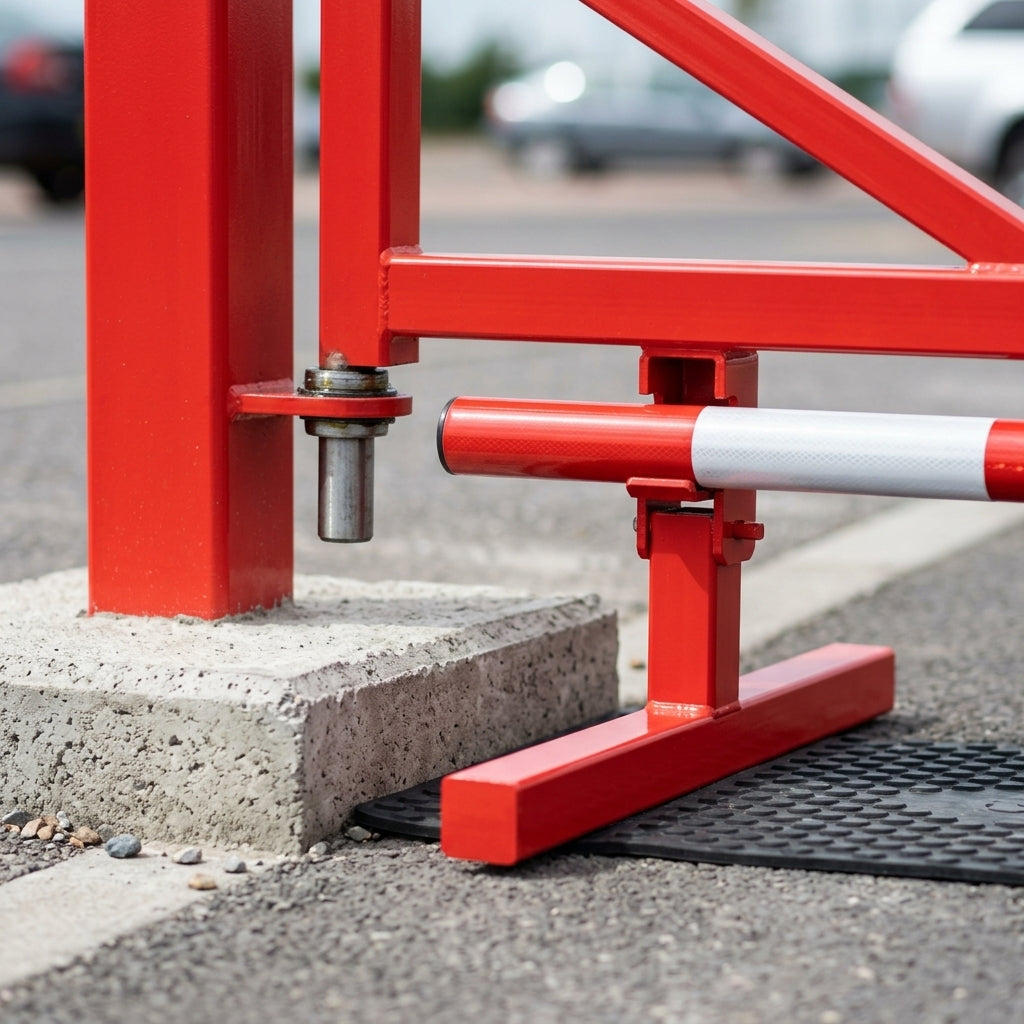

This height restrictor comprises a main body of 90×90mm square tube and a gate arm of 60×60mm square tube, both with 3mm wall thickness. The beam swings open to permit access when needed and can be locked in the open position using a secondary catch post. The body is coated red as standard; other colours are available to BS/RAL specification on request.

Key Features

• Standard clearance 2.05m with optional knock bar; 2.2m without
• Swing-open design allows full access when required
• Lockable in open position via secondary catch mechanism
• Galvanised mild steel with red powder coat finish (other colours available)
• Available ragged or flanged; knock bar and warning sign optional extras
• Simple installation; concretes 600mm below ground

Specifications

• Main body: 90×90mm square tube, 3mm wall thickness
• Gate arm: 60×60mm square tube, 3mm wall thickness
• Ground embedment: 600mm below surface
• Available widths: 3m, 4m, 5m, 6m, 7m
• Fixing options: surface mounted or root fixed
• Material: galvanised mild steel with powder coat

Applications

• Surface car parks and retail car parks
• Multi-storey car parks
• Industrial and commercial compounds
• Sites requiring vehicle height restriction
• Access control for high-sided vehicles
